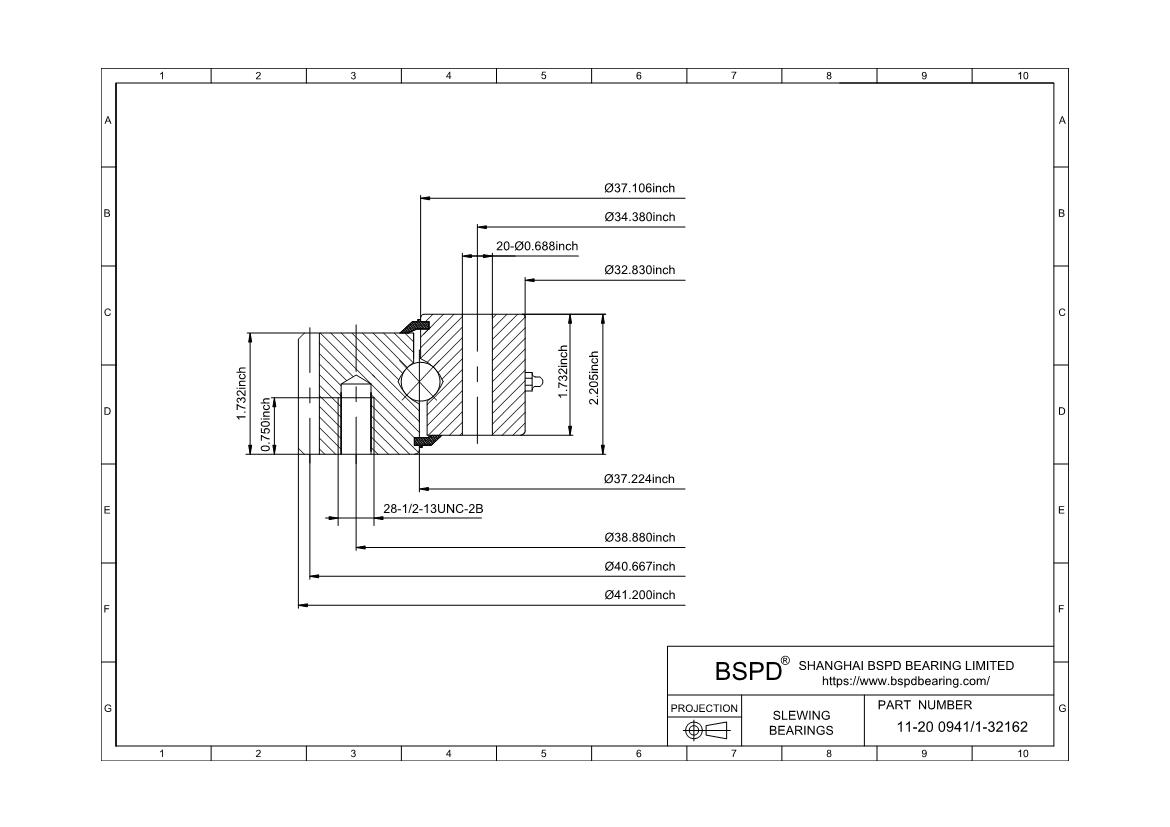

11-20 0941/1-32162 IMO Slewing Rings & Slewing drives
Dimensions: Bore (Inner) Diameter: 32.83; Outer Diameter: 41.2; Width (Thickness): ;

11-20 0941/1-32162
REQUEST FOR QUOTE
* *
Send
Product Attributes
Specifications
Part Number 11-20 0941/1-32162
Gear External toothed
Geometry
Weight(G) 170
Outside diameter outer ring(Da) 41.2
Inside diameter inner ring(di) 32.83
inside diameter outer ring(Di) 37.224
Outside diameter inner ring (da) 37.106
Outside bole-hole circle diameter (La)
intside bole-hole circle diameter (Li)
Mounting Holes
Pitch circle diameter Outer Ring (La) 38.88
Number Holes in Outer Ring (na) 28
Pitch circle diameter Inner Ring (Li) 34.38
Number Holes in Inner Ring (ni) 20
Gearing and Tooth Forces
Pitch Circle Diameter (do) 40.667
Diametral Pitch (Pd) 3
Number of Teeth (Z2) 122
Permissible tooth force (fz norm)(lbs) 3700
Maximum perissible tooth force (fz max)(lbs) 7960
Load Rating
Static Co rad(lbs) 130389
Static Co Max(lbs) 304841
Dynamic C rad(lbs) 47884
Dynamic C Max(lbs) 48109
11-20 0941/1-32162
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
