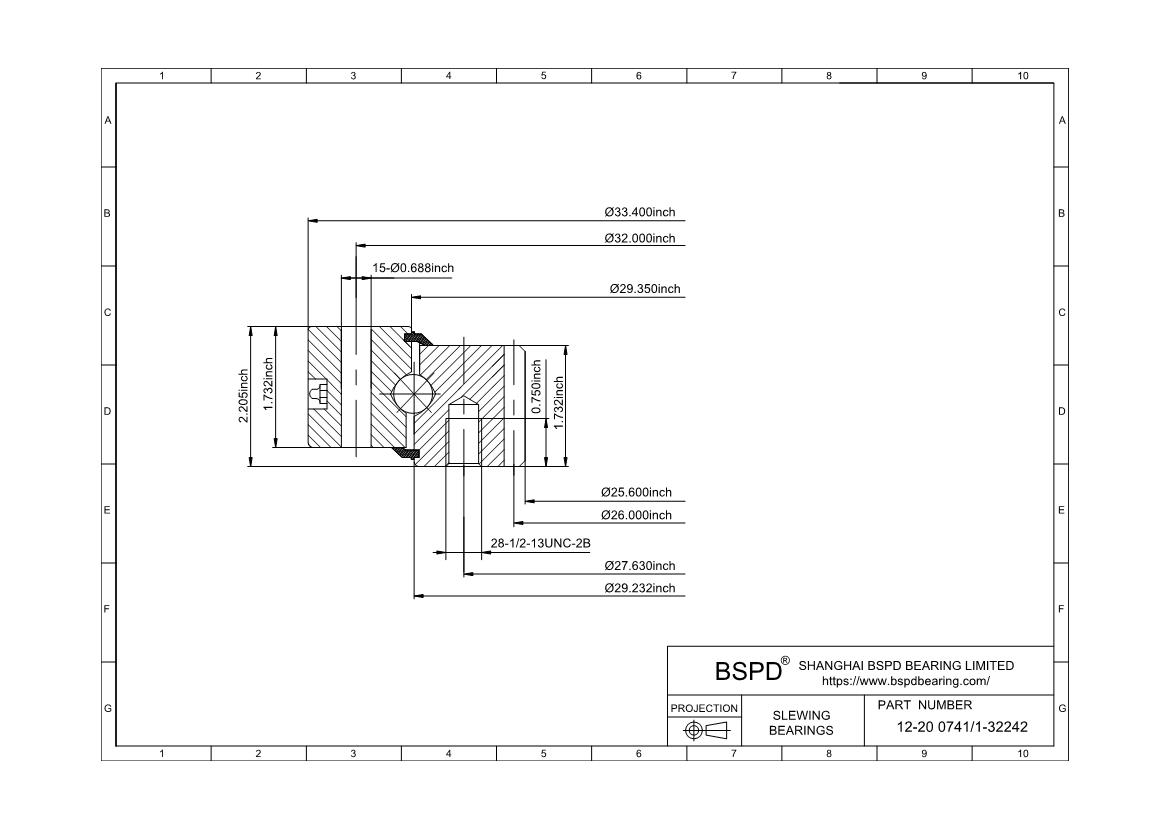

12-20 0741/1-32242
IMO Slewing Rings & Slewing drives
Dimensions: Bore (Inner) Diameter: 25.6； Outer Diameter: 33.4； Width (Thickness): ;
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | 12-20 0741/1-32242 |
| Gear | Internal toothed |
| Geometry | |
| Weight(G) | 126 |
| Outside diameter outer ring(Da) | 33.4 |
| Inside diameter inner ring(di) | 25.6 |
| inside diameter outer ring(Di) | 29.350 |
| Outside diameter inner ring (da) | 29.232 |
| Outside bole-hole circle diameter (La) | |
| intside bole-hole circle diameter (Li) | |
| Mounting Holes | |
| Pitch circle diameter Outer Ring (La) | 32 |
| Number Holes in Outer Ring (na) | 15 |
| Pitch circle diameter Inner Ring (Li) | 27.63 |
| Number Holes in Inner Ring (ni) | 28 |
| Gearing and Tooth Forces | |
| Pitch Circle Diameter (do) | 26 |
| Diametral Pitch (Pd) | 4 |
| Number of Teeth (Z2) | 104 |
| Permissible tooth force (fz norm)(lbs) | 2830 |
| Maximum perissible tooth force (fz max)(lbs) | 6290 |
| Load Rating | |
| Static Co rad(lbs) | 102738 |
| Static Co Max(lbs) | 240043 |
| Dynamic C rad(lbs) | 43613 |
| Dynamic C Max(lbs) | 43838 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings 12-20 0741/1-32242 ? IMO Slewing Rings & Slewing drives Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
