13004001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 150.0"； Outer Diameter: 170.0"； Width (Thickness): 9.875";

13004001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 13004001
Maximum Allowable Gear Tooth Load (Fz) -
Moment Load Rating (Crm) 8,098,000ft-lbs | 36151.786KN
Bearing Types Slewing Ring Bearing

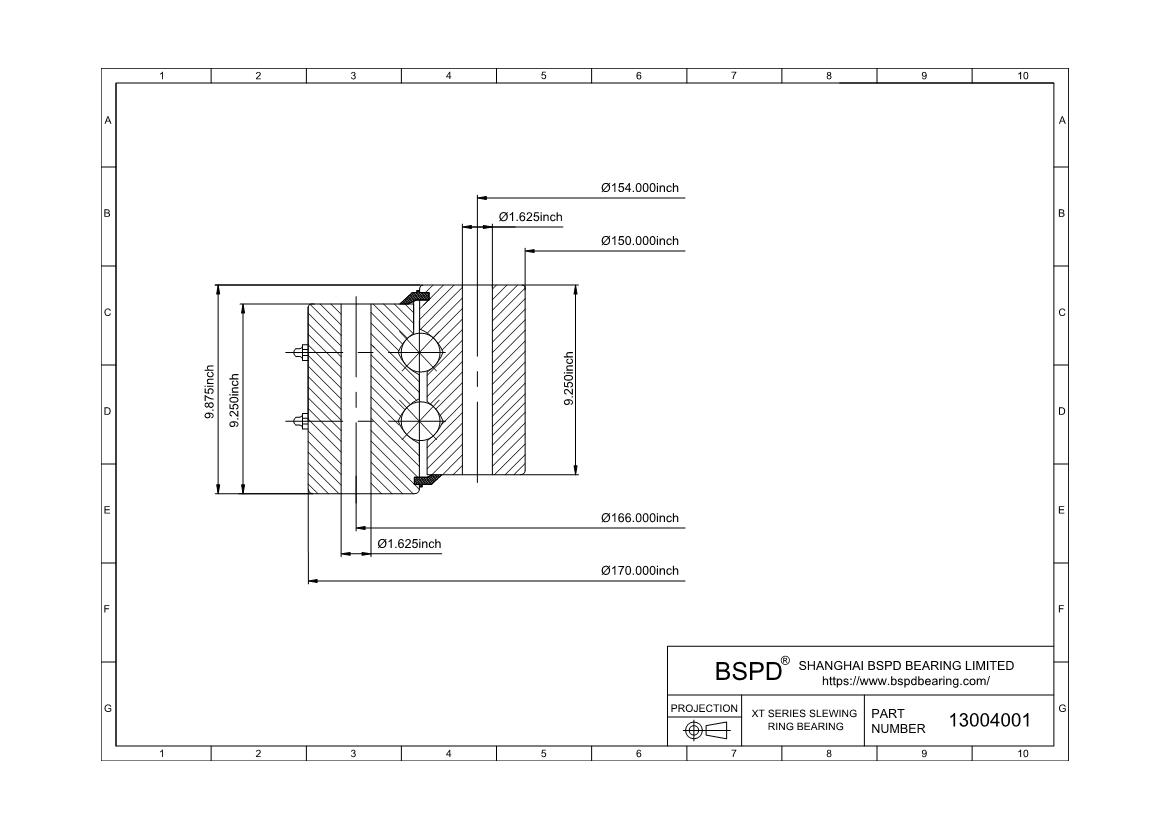

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 170.000" | 4318mm
Inside Diameter of Inner Ring (di) 150.000" | 3810mm
Height of overall bearing assembly(H) 9.875" | 250.83mm
Height of outer ring(Ho) 9.250" | 234.95mm
Height of inner ring(Hi) 9.250" | 234.95mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 11,950lbs | 5420.401KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 166.000" | 4216.4mm
Number Holes in Outer Ring (no) 64.000
Size of hole in outer ring(Bo) 1.625
Bolt circle in inner ring(Li) 154.000" | 3911.6mm
Number Holes in Inner Ring (ni) 64.000
Size of hole in inner ring(Bi) 1.625
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
13004001
