16015001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 43.75"; Outer Diameter: 56.25"; Width (Thickness): 6.75";

16015001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16015001
Maximum Allowable Gear Tooth Load (Fz) -
Moment Load Rating (Crm) 2,083,600ft-lbs | 9301.786KN
Bearing Types Slewing Ring Bearing

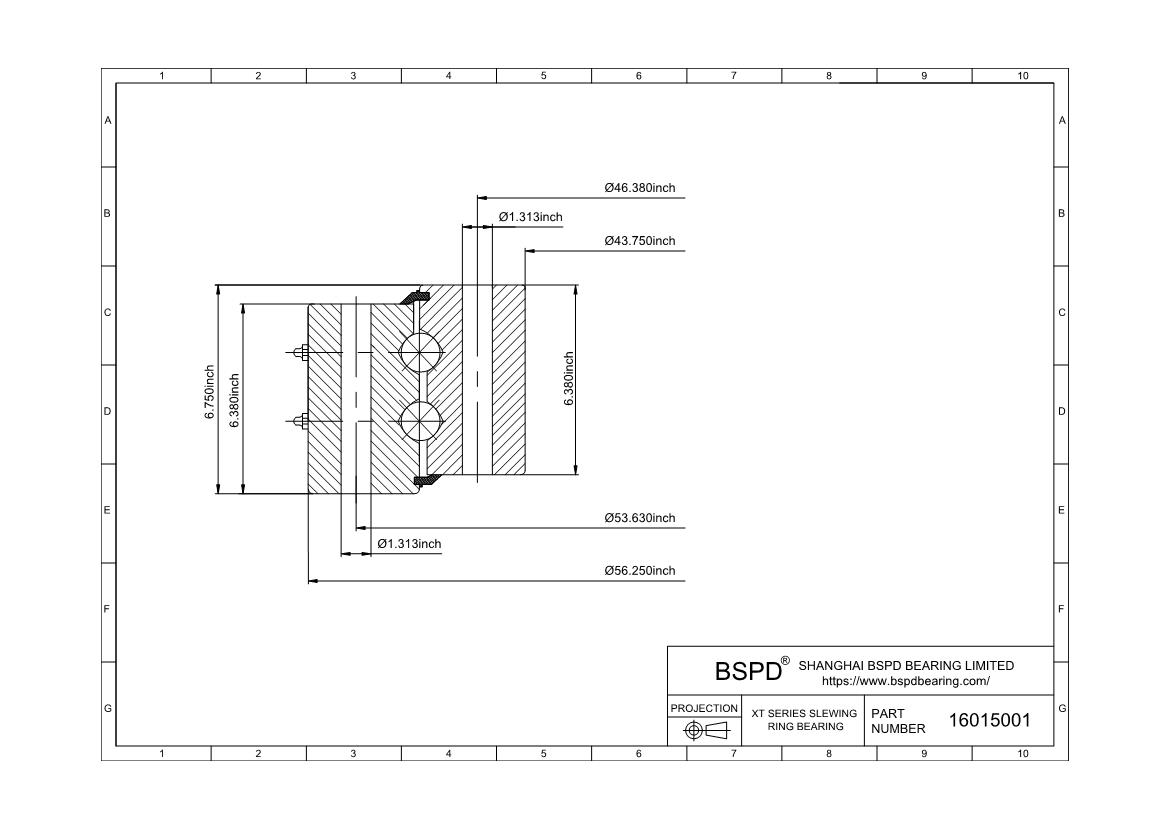

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 56.250" | 1428.75mm
Inside Diameter of Inner Ring (di) 43.750" | 1111.25mm
Height of overall bearing assembly(H) 6.750" | 171.45mm
Height of outer ring(Ho) 6.380" | 162.05mm
Height of inner ring(Hi) 6.380" | 162.05mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 1,520lbs | 689.457KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 53.630" | 1362.2mm
Number Holes in Outer Ring (no) 36
Size of hole in outer ring(Bo) 1.313
Bolt circle in inner ring(Li) 46.380" | 1178.05mm
Number Holes in Inner Ring (ni) 36
Size of hole in inner ring(Bi) 1 1/4-7
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16015001
