161.20.0560.891.21.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 474 mm; Outer Diameter: 676.8 mm; Width (Thickness): 62 mm;

161.20.0560.891.21.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number161.20.0560.891.21.1503
SeriesSeries 16
GearExternal gear
TypeRoller
System of MeasurementMetric
Inside Diameter Of Inner Ring474 mm
Outside Diameter Of Outer Ring676.8 mm
Internal Diameter On Outer Ring562 mm
Height Of Overall Bearing Assembly62 mm
Height Of Inner Ring53 mm
Height Of Outer Ring53 mm
External Diameter On Inner Ring558 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly62 Kg
Bolt Circle In Inner Ring505 mm
Bolt Circle In Outer Ring615 mm
Size Of Hole In Inner Ring15.5 mm
Size Of Hole In Outer Ring15.5 mm
Number Holes In Inner Ring20
Number Holes In Outer Ring20
Diametral Pitch660 mm
Number Of Gear Teeth110
Permissible Tooth Forces T30.7
Max Gear Tooth Load Fz61.4
Diameter Of Bearing Raceway560 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

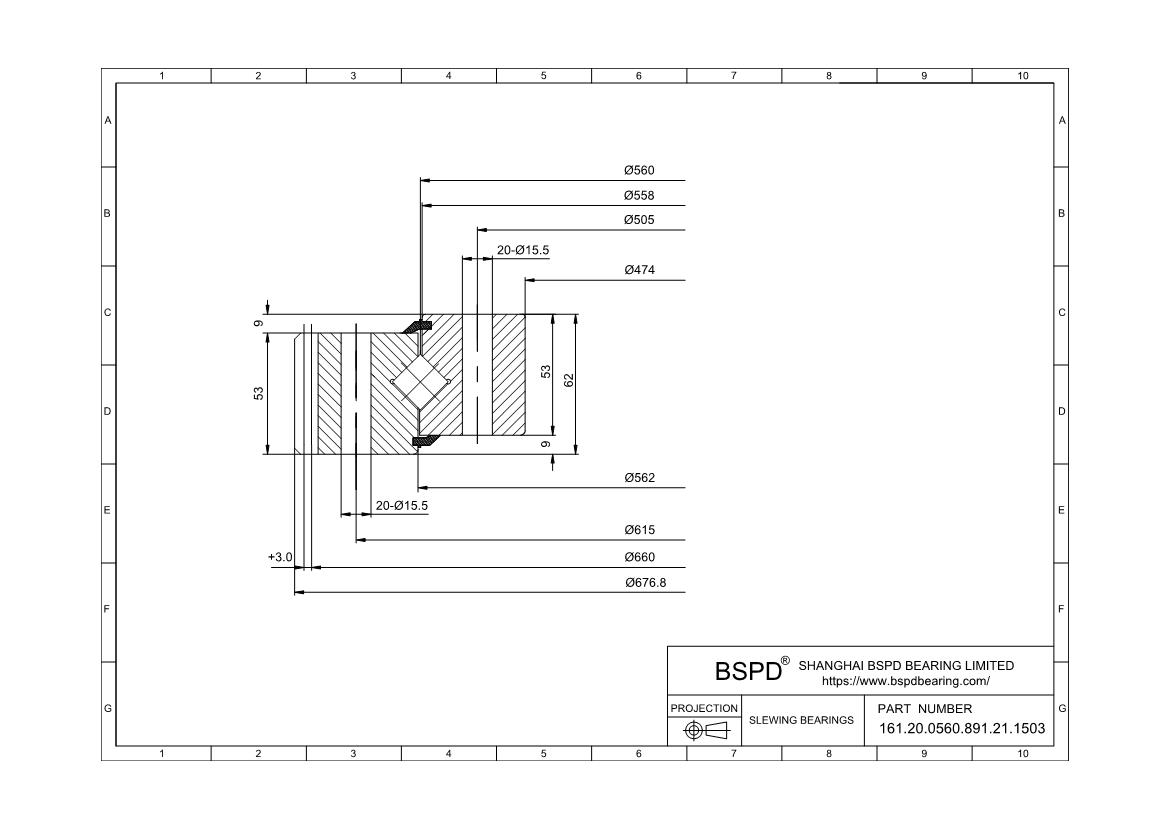

CorrespondFIG1
x·m+3
k·m-0.6
K9 mm
n14
Bolt Size (M)14 mm
M6
F53 mm
RoHSCompliant
161.20.0560.891.21.1503
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
