161.20.0630.890.11.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 538 mm; Outer Diameter: 758.4 mm; Width (Thickness): 62 mm;

161.20.0630.890.11.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number161.20.0630.890.11.1503
SeriesSeries 16
GearExternal gear
TypeRoller
System of MeasurementMetric
Inside Diameter Of Inner Ring538 mm
Outside Diameter Of Outer Ring758.4 mm
Internal Diameter On Outer Ring632 mm
Height Of Overall Bearing Assembly62 mm
Height Of Inner Ring53 mm
Height Of Outer Ring53 mm
External Diameter On Inner Ring628 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly76 Kg
Bolt Circle In Inner Ring573 mm
Bolt Circle In Outer Ring687 mm
Size Of Hole In Inner Ring17.5 mm
Size Of Hole In Outer Ring17.5 mm
Number Holes In Inner Ring20
Number Holes In Outer Ring20
Diametral Pitch736 mm
Number Of Gear Teeth92
Permissible Tooth Forces T26.6
Max Gear Tooth Load Fz53.2
Diameter Of Bearing Raceway630 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

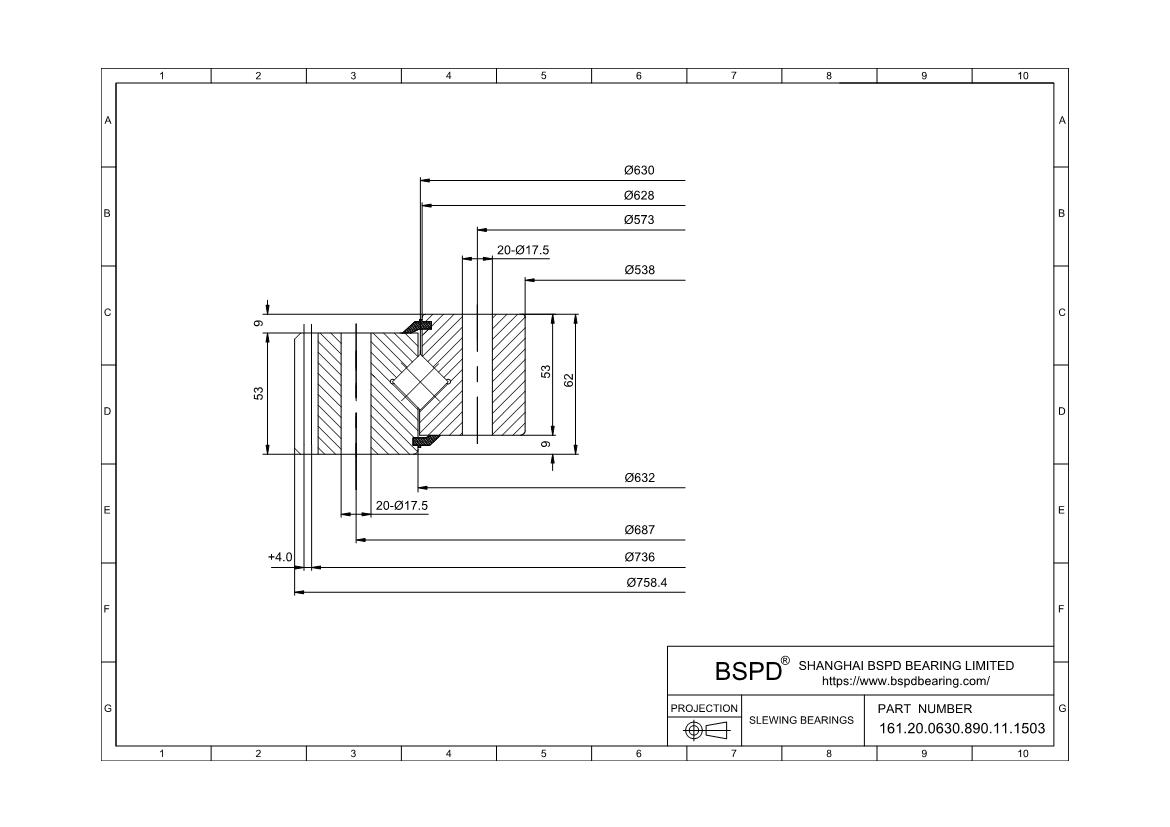

CorrespondFIG1
x·m+4
k·m-0.8
K9 mm
n14
Bolt Size (M)16 mm
M8
F53 mm
RoHSCompliant
161.20.0630.890.11.1503
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
