161.25.1120.891.21.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1008 mm; Outer Diameter: 1278 mm; Width (Thickness): 73 mm;

161.25.1120.891.21.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number161.25.1120.891.21.1503
SeriesSeries 16
GearExternal gear
TypeRoller
System of MeasurementMetric
Inside Diameter Of Inner Ring1008 mm
Outside Diameter Of Outer Ring1278 mm
Internal Diameter On Outer Ring1122 mm
Height Of Overall Bearing Assembly73 mm
Height Of Inner Ring64 mm
Height Of Outer Ring64 mm
External Diameter On Inner Ring1118 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly195 Kg
Bolt Circle In Inner Ring1052 mm
Bolt Circle In Outer Ring1188 mm
Size Of Hole In Inner Ring22 mm
Size Of Hole In Outer Ring22 mm
Number Holes In Inner Ring36
Number Holes In Outer Ring36
Diametral Pitch1250 mm
Number Of Gear Teeth125
Permissible Tooth Forces T61.8
Max Gear Tooth Load Fz123.6
Diameter Of Bearing Raceway1120 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

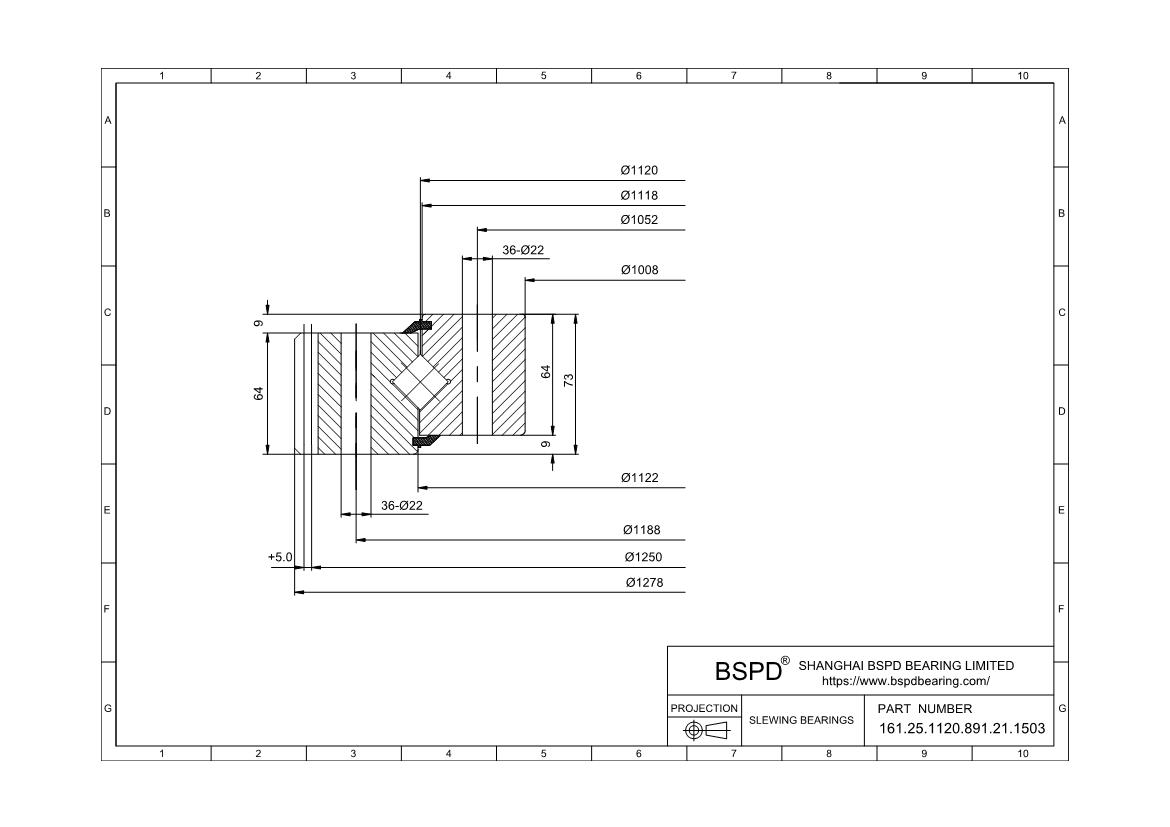

CorrespondFIG1
x·m+5
k·m-1
K9 mm
n16
Bolt Size (M)20 mm
M10
F64 mm
RoHSCompliant
161.25.1120.891.21.1503
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
