161.28.1500.891.21.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 1366 mm; Outer Diameter: 1689.6 mm; Width (Thickness): 80 mm;

161.28.1500.891.21.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number161.28.1500.891.21.1503
SeriesSeries 16
GearExternal gear
TypeRoller
System of MeasurementMetric
Inside Diameter Of Inner Ring1366 mm
Outside Diameter Of Outer Ring1689.6 mm
Internal Diameter On Outer Ring1502 mm
Height Of Overall Bearing Assembly80 mm
Height Of Inner Ring71 mm
Height Of Outer Ring71 mm
External Diameter On Inner Ring1498 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly349 Kg
Bolt Circle In Inner Ring1418 mm
Bolt Circle In Outer Ring1582 mm
Size Of Hole In Inner Ring26 mm
Size Of Hole In Outer Ring26 mm
Number Holes In Inner Ring40
Number Holes In Outer Ring40
Diametral Pitch1656 mm
Number Of Gear Teeth138
Permissible Tooth Forces T78.2
Max Gear Tooth Load Fz156.4
Diameter Of Bearing Raceway1500 mm
Distance Between Bottom Outer Ring Inner Ring9 mm

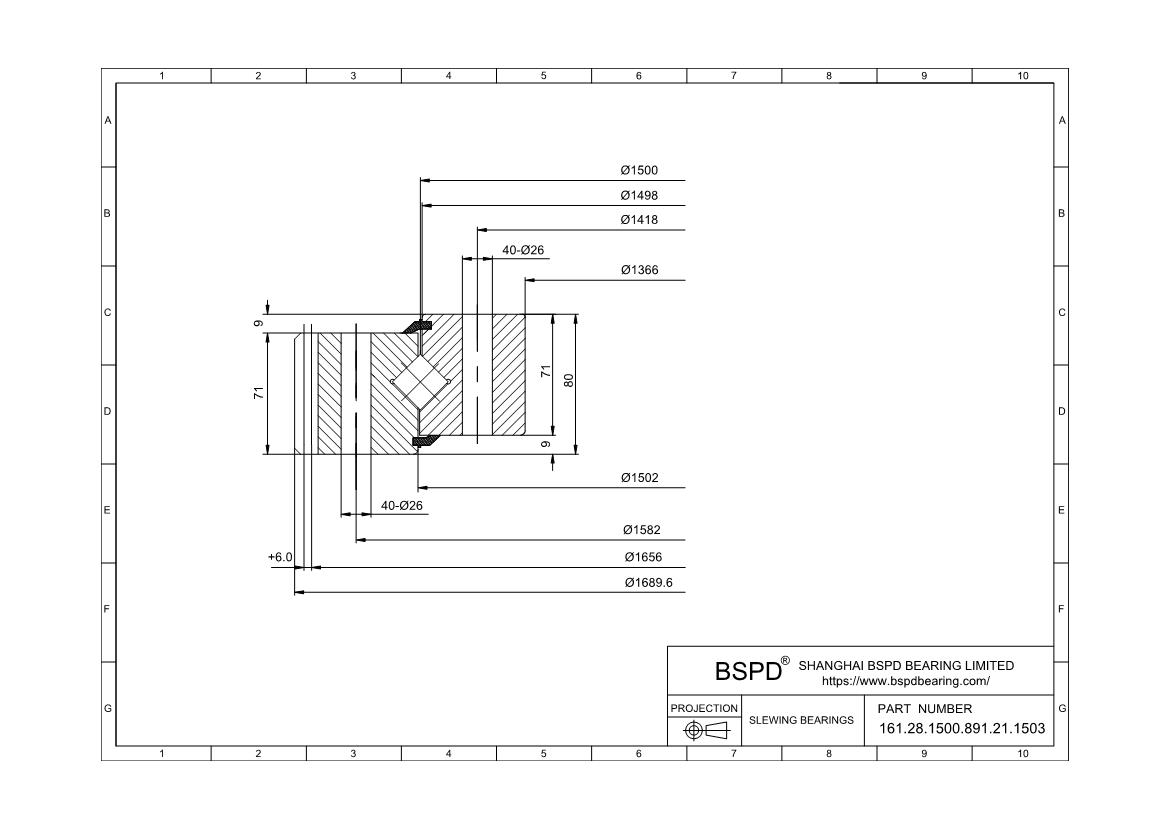

CorrespondFIG1
x·m+6
k·m-1.2
K9 mm
n18
Bolt Size (M)24 mm
M12
F71 mm
RoHSCompliant
161.28.1500.891.21.1503
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
