161.45.2366.891.41.1503 Metric Size Slewing Rings (2)
Dimensions: Bore (Inner) Diameter: 2183 mm; Outer Diameter: 2642.4 mm; Width (Thickness): 119 mm;

161.45.2366.891.41.1503
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product Number161.45.2366.891.41.1503
SeriesSeries 16
GearExternal gear
TypeRoller
System of MeasurementMetric
Inside Diameter Of Inner Ring2183 mm
Outside Diameter Of Outer Ring2642.4 mm
Internal Diameter On Outer Ring2369 mm
Height Of Overall Bearing Assembly119 mm
Height Of Inner Ring109 mm
Height Of Outer Ring109 mm
External Diameter On Inner Ring2363 mm
Ring Material42CRO or 50MN
Ball Materrial52100_Chrome_Steel
Cage MaterialNylon or 300 Series Stainless Steel
Seal MaterialNBR
Weight Of Bearing Assembly1182 Kg
Bolt Circle In Inner Ring2249 mm
Bolt Circle In Outer Ring2483 mm
Size Of Hole In Inner Ring33 mm
Size Of Hole In Outer Ring33 mm
Number Holes In Inner Ring52
Number Holes In Outer Ring52
Diametral Pitch2592 mm
Number Of Gear Teeth144
Permissible Tooth Forces T180
Max Gear Tooth Load Fz360
Diameter Of Bearing Raceway2366 mm
Distance Between Bottom Outer Ring Inner Ring10 mm

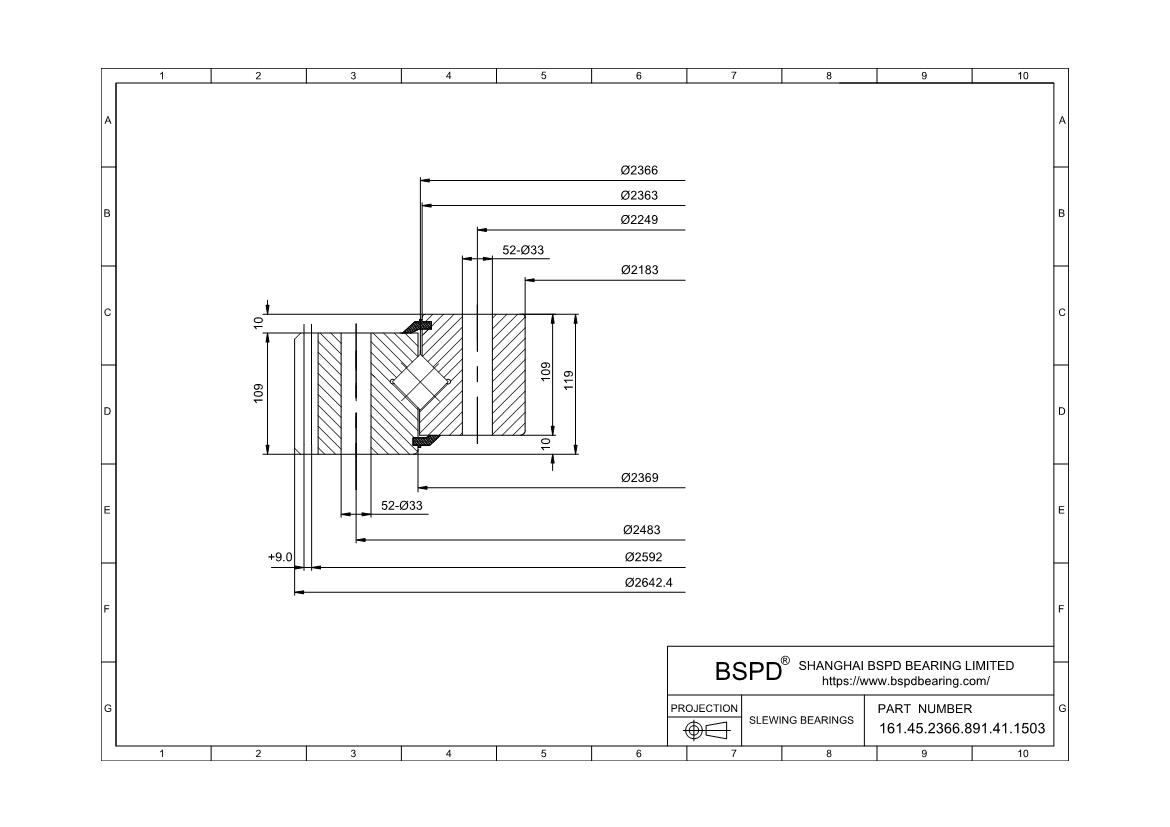

CorrespondFIG1
x·m+9
k·m-1.8
K10 mm
n19
Bolt Size (M)30 mm
M18
F109 mm
RoHSCompliant
161.45.2366.891.41.1503
