16258001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 10.25"; Outer Diameter: 17.086"; Width (Thickness): 3.13";

16258001
Slewing Bearings of similar size
same inner diameter
same width
Product Attributes
Specifications
Part Number 16258001
Maximum Allowable Gear Tooth Load (Fz) 6850lbs | 30.58KN
Moment Load Rating (Crm) 65200ft-lbs | 291.071KN
Bearing Types Slewing Ring Bearing

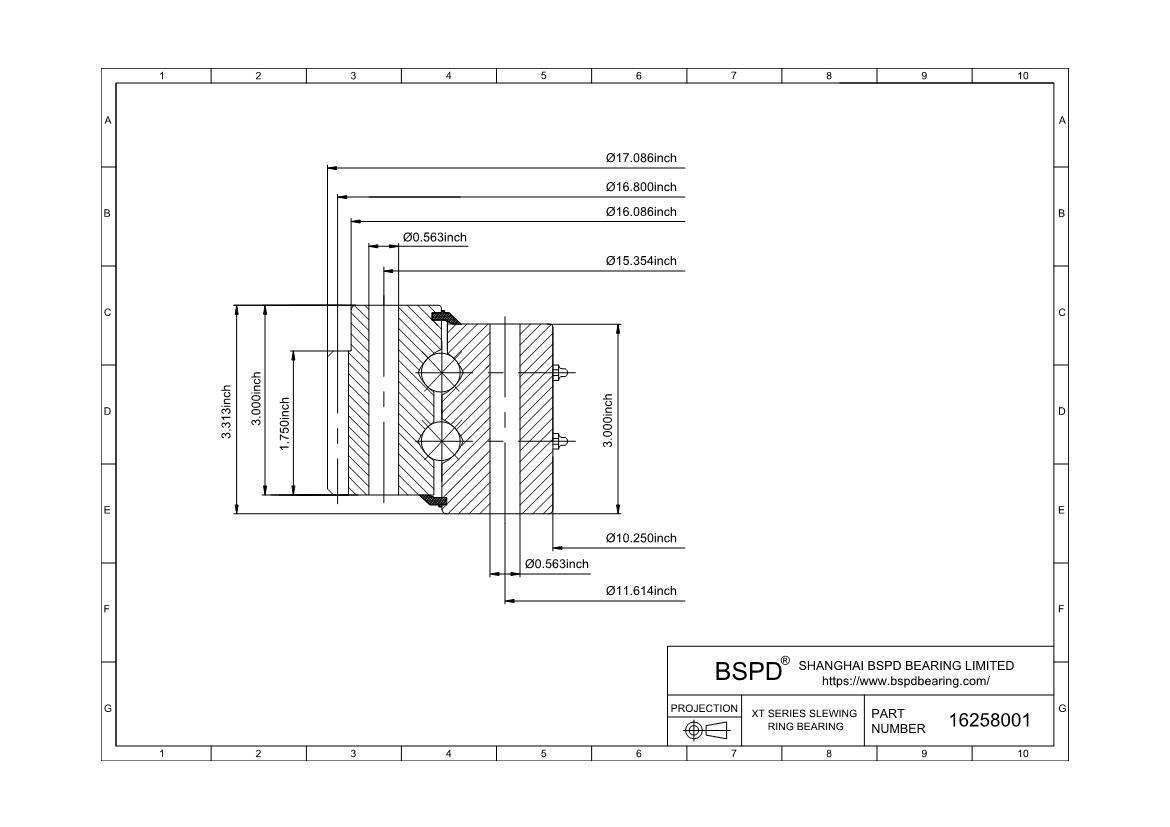

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 17.086" | 433.98mm
Inside Diameter of Inner Ring (di) 10.25" | 260.35mm
Height of overall bearing assembly(H) 3.313" | 84.15mm
Height of outer ring(Ho) 3" | 76.2mm
Height of inner ring(Hi) 3" | 76.2mm
External diameter on outer ring(Dr) 17.086" | 433.98mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 105lbs | 47.627KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 15.354" | 389.99mm
Number Holes in Outer Ring (no) 18
Size of hole in outer ring(Bo) 0.563"
Bolt circle in inner ring(Li) 11.614" | 295mm
Number Holes in Inner Ring (ni) 24
Size of hole in inner ring(Bi) 0.563"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FS
Pitch Diameter of Gear (D2) 16.800" | 426.72mm
Diametral Pitch (Pd) 5/7
Number of Gear Teeth(z2) 84
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 1.750
gear External
