16266001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 51.25"； Outer Diameter: 68.8"； Width (Thickness): 7.375";

16266001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16266001
Maximum Allowable Gear Tooth Load (Fz) 36480lbs | 162.857KN
Moment Load Rating (Crm) 3470900ft-lbs | 15495.089KN
Bearing Types Slewing Ring Bearing

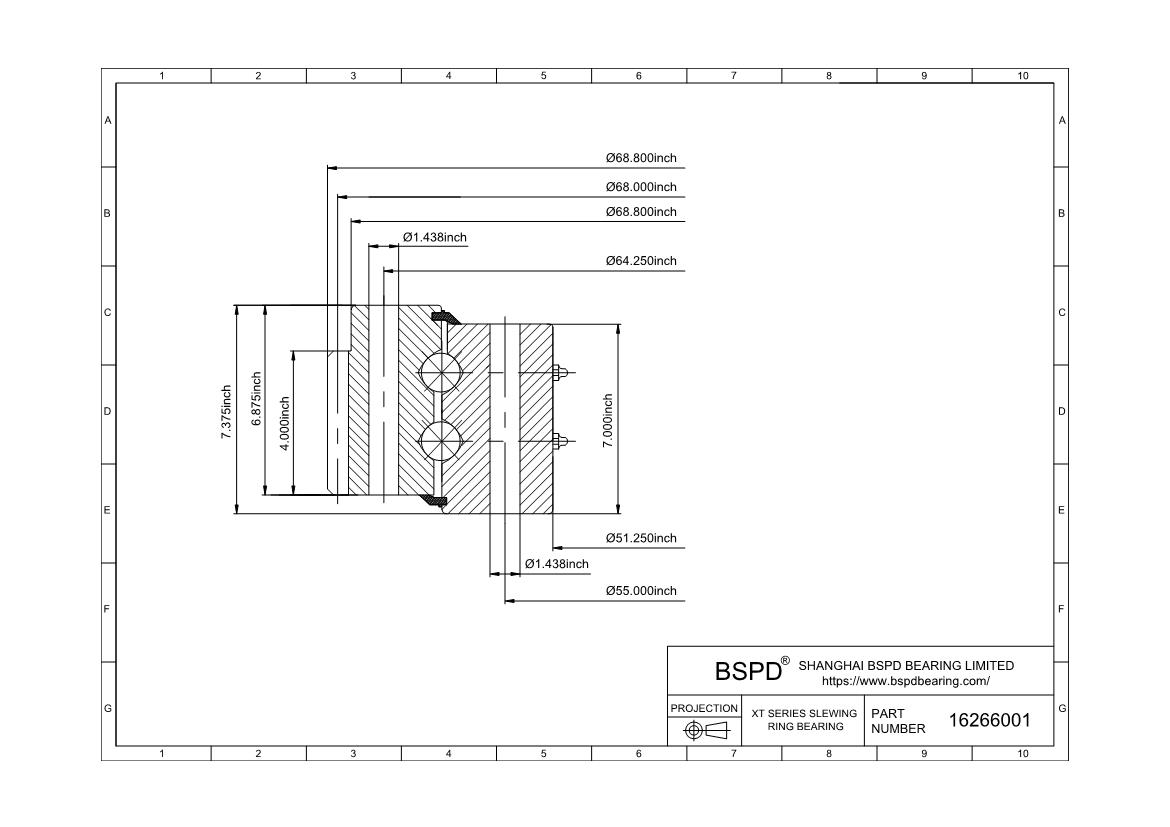

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 68.8" | 1747.52mm
Inside Diameter of Inner Ring (di) 51.25" | 1301.75mm
Height of overall bearing assembly(H) 7.375" | 187.33mm
Height of outer ring(Ho) 6.875" | 174.63mm
Height of inner ring(Hi) 7" | 177.8mm
External diameter on outer ring(Dr) 68.8" | 1747.52mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 2850lbs | 1292.732KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 64.25" | 1631.95mm
Number Holes in Outer Ring (no) 36
Size of hole in outer ring(Bo) 1.438"
Bolt circle in inner ring(Li) 55" | 1397mm
Number Holes in Inner Ring (ni) 42
Size of hole in inner ring(Bi) 1.438"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 68" | 1727.2mm
Diametral Pitch (Pd) 2
Number of Gear Teeth(z2) 136
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 4
gear External
16266001
