16267001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 58.5"; Outer Diameter: 75.394"; Width (Thickness): 6.11";

16267001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16267001
Maximum Allowable Gear Tooth Load (Fz) 31400lbs | 140.179KN
Moment Load Rating (Crm) 3335700ft-lbs | 14891.518KN
Bearing Types Slewing Ring Bearing

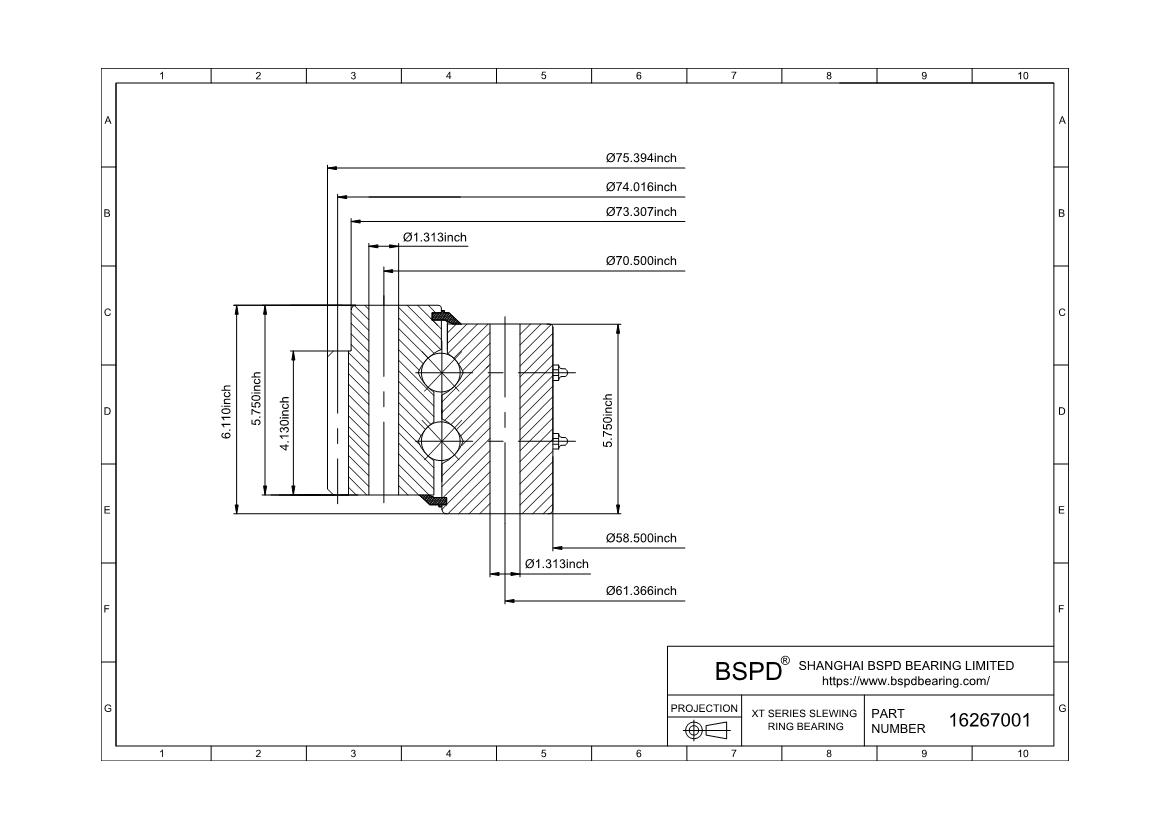

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 75.394" | 1915.01mm
Inside Diameter of Inner Ring (di) 58.5" | 1485.9mm
Height of overall bearing assembly(H) 6.11" | 155.19mm
Height of outer ring(Ho) 5.75" | 146.05mm
Height of inner ring(Hi) 5.75" | 146.05mm
External diameter on outer ring(Dr) 73.307" | 1862mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 2450lbs | 1111.296KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 70.5" | 1790.7mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 1.313"
Bolt circle in inner ring(Li) 61.366" | 1558.7mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 1.313"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 74.016" | 1880.01mm
Gear module(M) 10
Number of Gear Teeth(z2) 188
("+" / "-" sign increases tooth thickness at D2(X2) 0.8
Face Width of Gear Teeth(b2) 4.13
gear External
16267001
