16269001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 72.25"; Outer Diameter: 94.742"; Width (Thickness): 9.125";

16269001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16269001
Maximum Allowable Gear Tooth Load (Fz) 55490lbs | 247.723KN
Moment Load Rating (Crm) 8669000ft-lbs | 38700.893KN
Bearing Types Slewing Ring Bearing

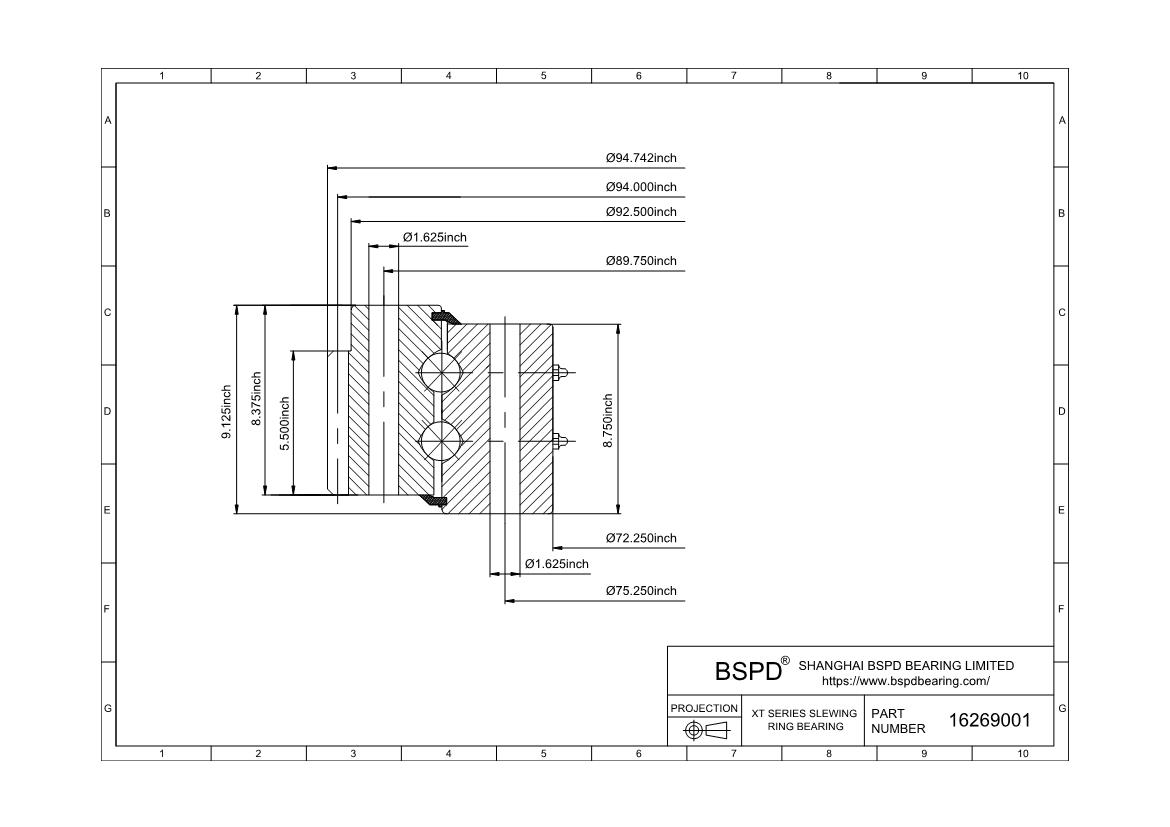

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 94.742" | 2406.45mm
Inside Diameter of Inner Ring (di) 72.25" | 1835.15mm
Height of overall bearing assembly(H) 9.125" | 231.78mm
Height of outer ring(Ho) 8.375" | 212.73mm
Height of inner ring(Hi) 8.75" | 222.25mm
External diameter on outer ring(Dr) 92.5" | 2349.5mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 5560lbs | 2521.96KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 89.75" | 2279.65mm
Number Holes in Outer Ring (no) 60
Size of hole in outer ring(Bo) 1.625"
Bolt circle in inner ring(Li) 75.25" | 1911.35mm
Number Holes in Inner Ring (ni) 68
Size of hole in inner ring(Bi) 1.625"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter of Gear (D2) 94" | 2387.6mm
Diametral Pitch (Pd) 2
Number of Gear Teeth(z2) 188
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 5.5
gear External
16269001
