16273001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 150.0"; Outer Diameter: 180.0"; Width (Thickness): 10.625";

16273001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16273001
Maximum Allowable Gear Tooth Load (Fz) 129080lbs | 576.25KN
Moment Load Rating (Crm) 18000000ft-lbs | 80357.143KN
Bearing Types Slewing Ring Bearing

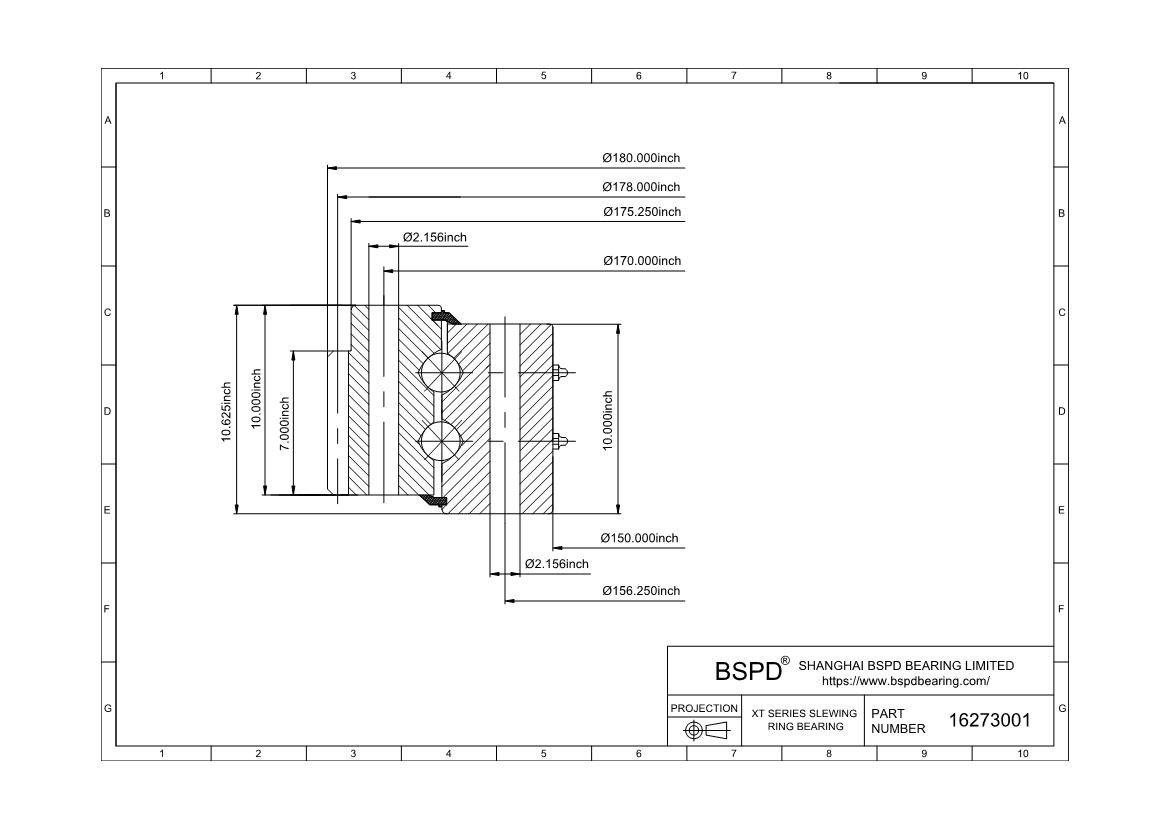

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 180" | 4572mm
Inside Diameter of Inner Ring (di) 150" | 3810mm
Height of overall bearing assembly(H) 10.625" | 269.88mm
Height of outer ring(Ho) 10" | 254mm
Height of inner ring(Hi) 10" | 254mm
External diameter on outer ring(Dr) 175.25" | 4451.35mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 22100lbs | 10024.339KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 170" | 4318mm
Number Holes in Outer Ring (no) 80
Size of hole in outer ring(Bo) 1.875"
Bolt circle in inner ring(Li) 156.25" | 3968.75mm
Number Holes in Inner Ring (ni) 80
Size of hole in inner ring(Bi) 1.875"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 178" | 4521.2mm
Diametral Pitch (Pd) 1
Number of Gear Teeth(z2) 178
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 7
gear External
16273001
