16275001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 47.6"； Outer Diameter: 66.0"； Width (Thickness): 8";

16275001
Slewing Bearings of similar size
same inner diameter
Product Attributes
Specifications
Part Number 16275001
Maximum Allowable Gear Tooth Load (Fz) 78,680lbs | 351.25KN
Moment Load Rating (Crm) 3,921,100ft-lbs | 17504.911KN
Bearing Types Slewing Ring Bearing

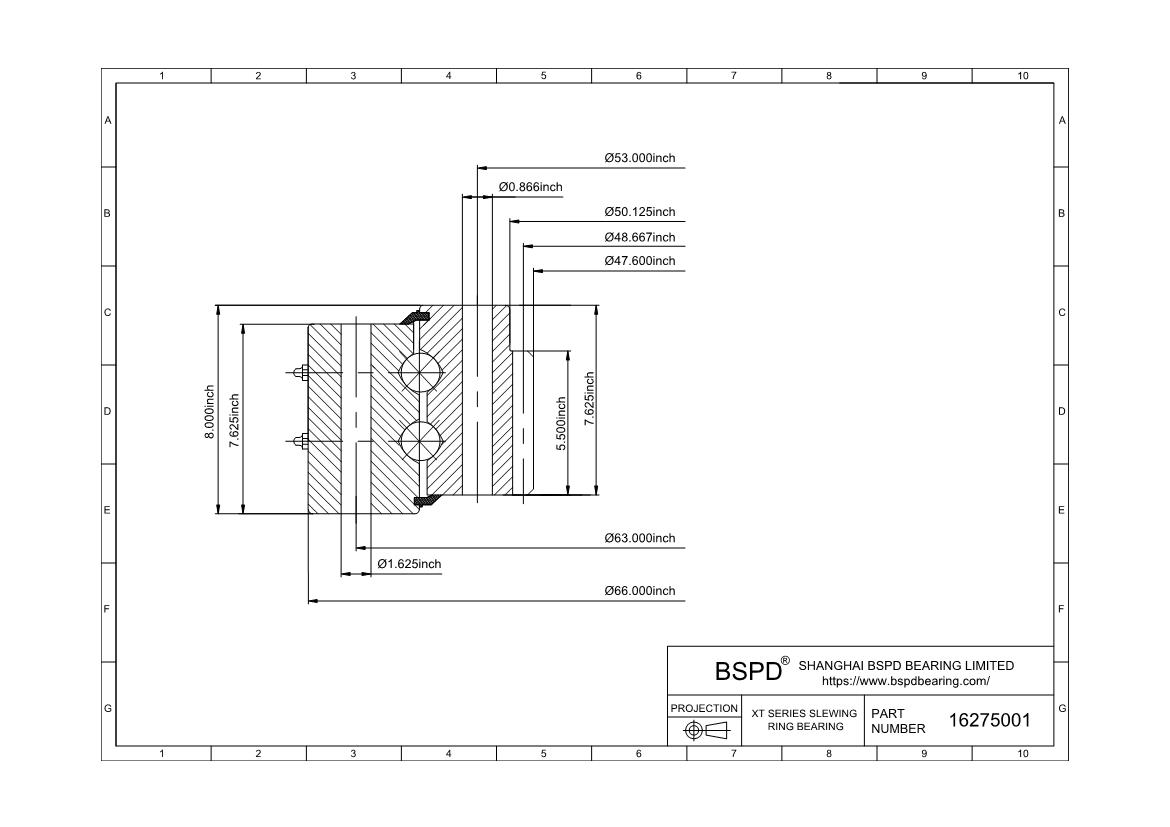

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 66.000" | 1676.4mm
Inside Diameter of Inner Ring (di) 47.6" | 1209.04mm
Height of overall bearing assembly(H) 8.000" | 203.2mm
Height of outer ring(Ho) 7.625" | 193.68mm
Height of inner ring(Hi) 7.625" | 193.68mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 50.125" | 1273.18mm
Approximate Weight (lbs) 2,820lbs | 1279.124KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 63.000" | 1600.2mm
Number Holes in Outer Ring (no) 42
Size of hole in outer ring(Bo) 1.625"
Bolt circle in inner ring(Li) 53.000" | 1346.2mm
Number Holes in Inner Ring (ni) 45
Size of hole in inner ring(Bi) 1.625"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter of Gear (D2) 48.667" | 1236.14mm
Diametral Pitch (Pd) 1.5
Number of Gear Teeth(z2) 73
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 5.500
gear Internal
