16276001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 50.2"; Outer Diameter: 70.5"; Width (Thickness): 8.625";

16276001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16276001
Maximum Allowable Gear Tooth Load (Fz) 56,400lbs | 251.786KN
Moment Load Rating (Crm) 4,863,400ft-lbs | 21711.607KN
Bearing Types Slewing Ring Bearing

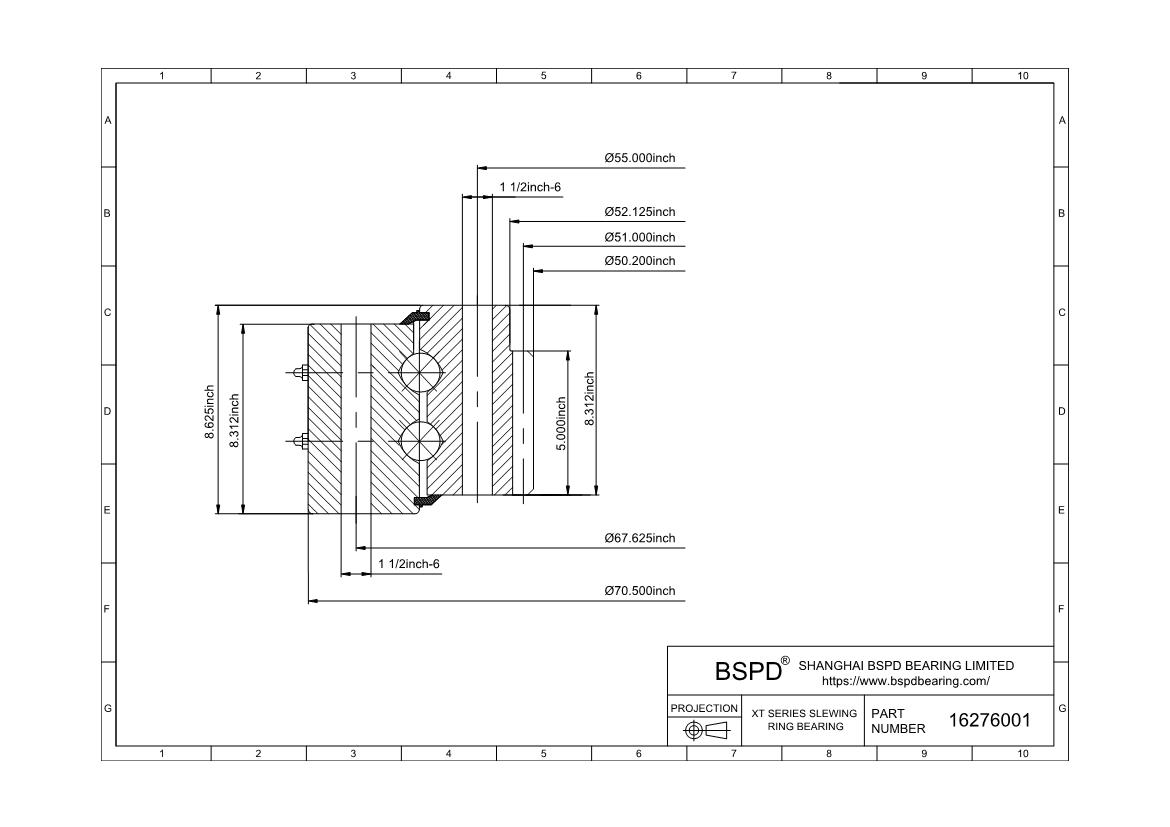

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 70.500" | 1790.7mm
Inside Diameter of Inner Ring (di) 50.2000" | 1275.08mm
Height of overall bearing assembly(H) 8.625" | 219.08mm
Height of outer ring(Ho) 8.312" | 211.12mm
Height of inner ring(Hi) 8.312" | 211.12mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 52.130" | 1324.1mm
Approximate Weight (lbs) 3,700lbs | 1678.283KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 67.625" | 1717.68mm
Number Holes in Outer Ring (no) 36
Size of hole in outer ring(Bo) 1 1/2-6
Bolt circle in inner ring(Li) 55.000" | 1397mm
Number Holes in Inner Ring (ni) 40
Size of hole in inner ring(Bi) 1.625"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter of Gear (D2) 51.000" | 1295.4mm
Diametral Pitch (Pd) 2
Number of Gear Teeth(z2) 102
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 5.000
gear Internal
16276001
