16277001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 65.248"； Outer Diameter: 81.89"； Width (Thickness): 5.591";

16277001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16277001
Maximum Allowable Gear Tooth Load (Fz) 41,140lbs | 183.661KN
Moment Load Rating (Crm) 2,534,900ft-lbs | 11316.518KN
Bearing Types Slewing Ring Bearing

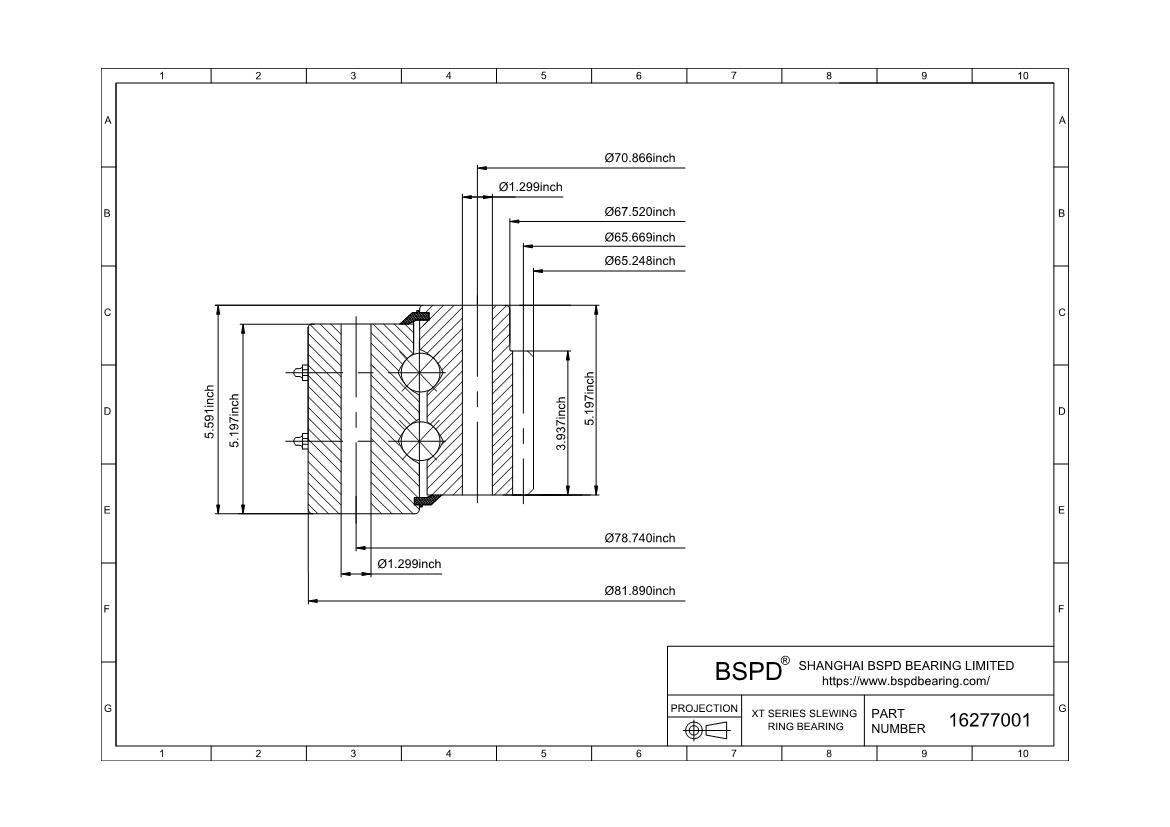

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 81.890" | 2080.01mm
Inside Diameter of Inner Ring (di) 65.248" | 1657.3mm
Height of overall bearing assembly(H) 5.591" | 142.01mm
Height of outer ring(Ho) 5.197" | 132mm
Height of inner ring(Hi) 5.197" | 132mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 67.520" | 1715.01mm
Approximate Weight (lbs) 2,460lbs | 1115.831KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 78.740" | 2000mm
Number Holes in Outer Ring (no) 54
Size of hole in outer ring(Bo) 1.299
Bolt circle in inner ring(Li) 70.866" | 1800mm
Number Holes in Inner Ring (ni) 54
Size of hole in inner ring(Bi) 1.299
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 65.669" | 1667.99mm
Diametral Pitch (Pd) -12" | -304.8mm
Number of Gear Teeth(z2) 139
("+" / "-" sign increases tooth thickness at D2(X2) -.5
Face Width of Gear Teeth(b2) 3.937
gear Internal
16277001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
