16280001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 87.17"； Outer Diameter: 109.375"； Width (Thickness): 9.312";

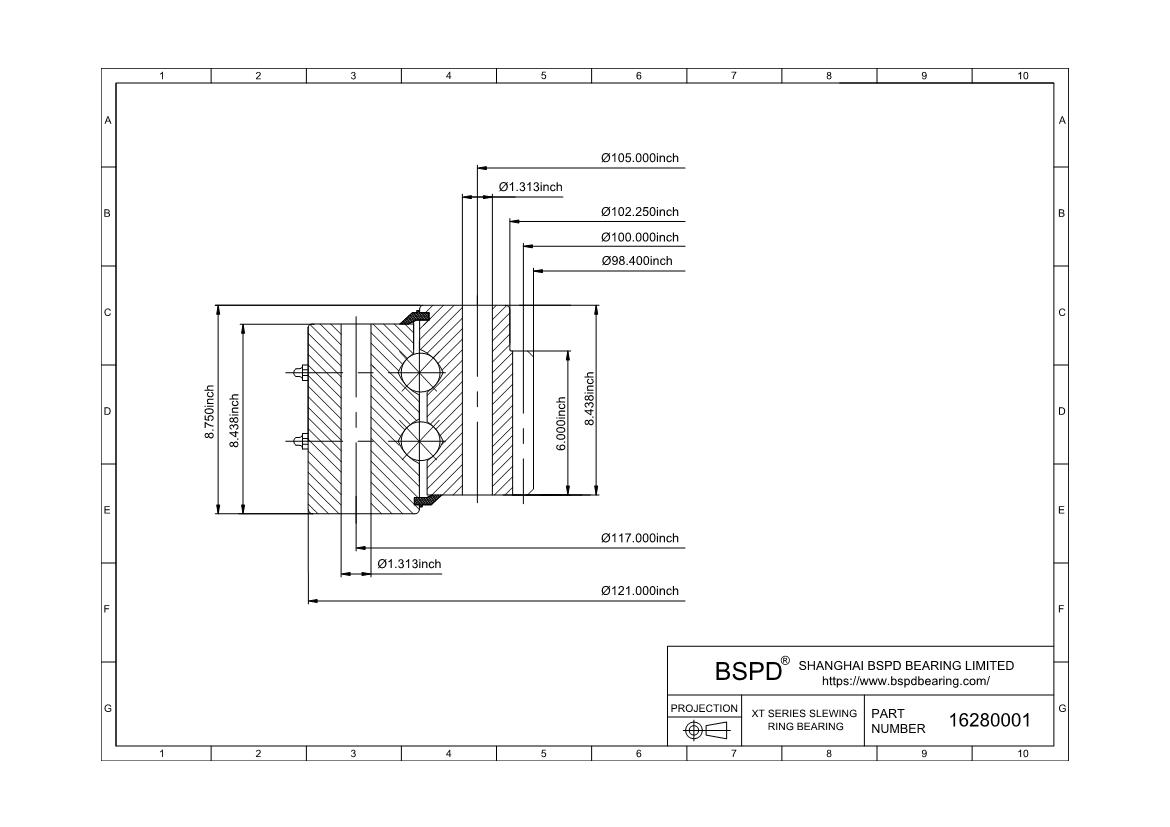

16280001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16280001
Maximum Allowable Gear Tooth Load (Fz) 94870lbs | 423.527KN
Moment Load Rating (Crm) 9075400ft-lbs | 40515.179KN
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 109.375" | 2778.13mm
Inside Diameter of Inner Ring (di) 87.17" | 2214.12mm
Height of overall bearing assembly(H) 9.312" | 236.52mm
Height of outer ring(Ho) 8.937" | 227mm
Height of inner ring(Hi) 8" | 203.2mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 87.17" | 2214.12mm
Approximate Weight (lbs) 7100lbs | 3220.489KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 102.953" | 2615.01mm
Number Holes in Outer Ring (no) 66
Size of hole in outer ring(Bo) 1.593"
Bolt circle in inner ring(Li) 93.504" | 2375mm
Number Holes in Inner Ring (ni) 66
Size of hole in inner ring(Bi) 1.593"
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 87.874" | 2232mm
Gear module（M） 18
Number of Gear Teeth(z2) 124
("+" / "-" sign increases tooth thickness at D2(X2) -0.5
Face Width of Gear Teeth(b2) 6
gear Internal
16280001
