16282001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 12.25"; Outer Diameter: 20.375"; Width (Thickness): 4.5";

16282001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16282001
Maximum Allowable Gear Tooth Load (Fz) -
Moment Load Rating (Crm) 102,500ft-lbs | 457.589KN
Bearing Types Slewing Ring Bearing

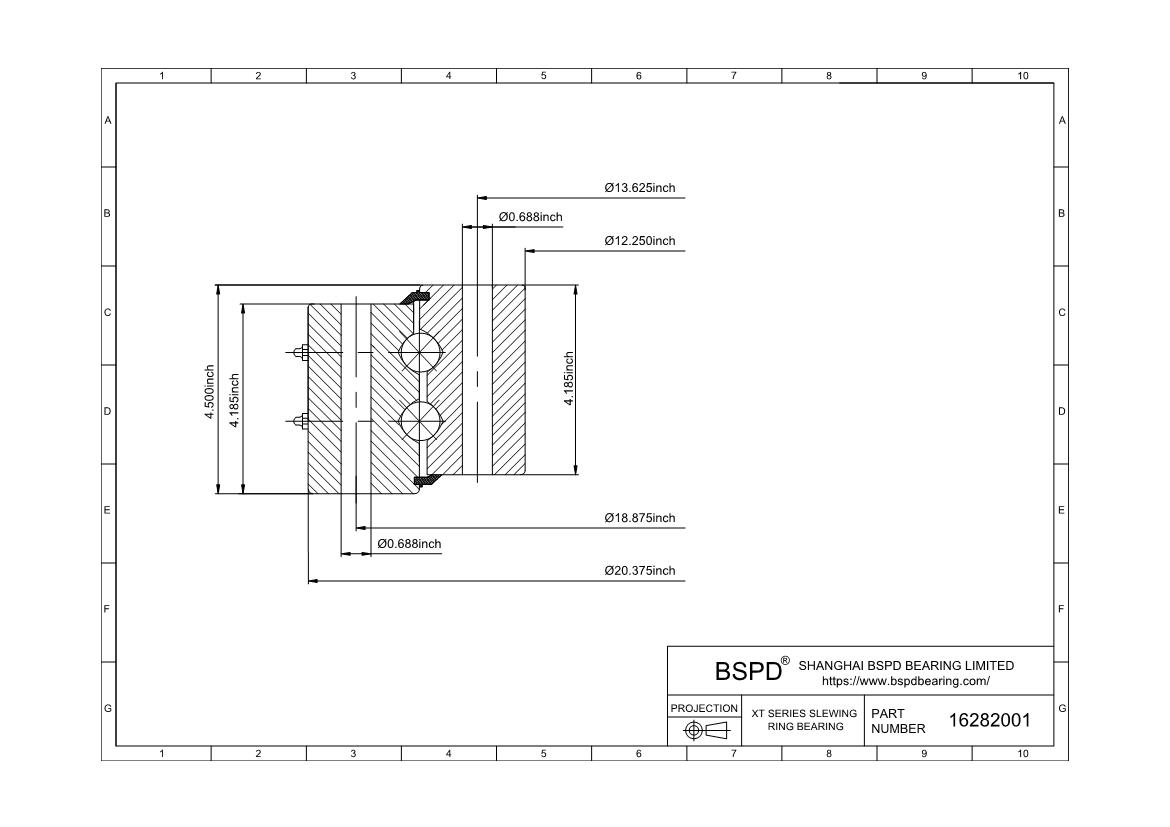

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 20.375" | 517.53mm
Inside Diameter of Inner Ring (di) 12.25" | 311.15mm
Height of overall bearing assembly(H) 4.500" | 114.3mm
Height of outer ring(Ho) 4.185" | 106.3mm
Height of inner ring(Hi) 4.165" | 105.79mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 210lbs | 95.254KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 18.875" | 479.43mm
Number Holes in Outer Ring (no) 20
Size of hole in outer ring(Bo) 0.688
Bolt circle in inner ring(Li) 13.625" | 346.08mm
Number Holes in Inner Ring (ni) 20
Size of hole in inner ring(Bi) 0.688
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16282001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
