16283001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 18.62"； Outer Diameter: 29.75"； Width (Thickness): 7";

16283001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16283001
Maximum Allowable Gear Tooth Load (Fz) -
Moment Load Rating (Crm) 363,100ft-lbs | 1620.982KN
Bearing Types Slewing Ring Bearing

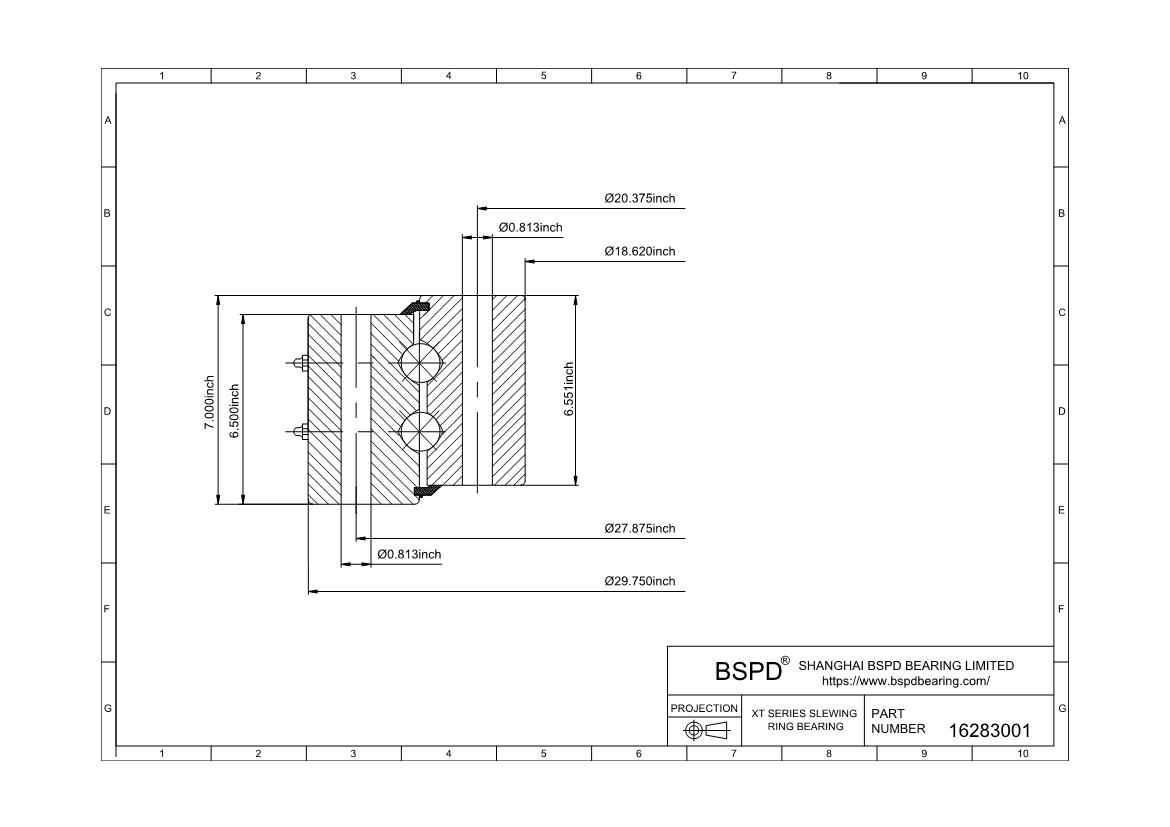

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 29.750" | 755.65mm
Inside Diameter of Inner Ring (di) 18.620" | 472.95mm
Height of overall bearing assembly(H) 7.000" | 177.8mm
Height of outer ring(Ho) 6.500" | 165.1mm
Height of inner ring(Hi) 6.551" | 166.4mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 645lbs | 292.566KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 27.875" | 708.03mm
Number Holes in Outer Ring (no) 34
Size of hole in outer ring(Bo) 0.813
Bolt circle in inner ring(Li) 20.375" | 517.53mm
Number Holes in Inner Ring (ni) 32
Size of hole in inner ring(Bi) 0.813
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16283001
