16284001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 30.236"; Outer Diameter: 41.417"; Width (Thickness): 7.48";

16284001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16284001
Maximum Allowable Gear Tooth Load (Fz) -
Moment Load Rating (Crm) 734800ft-lbs | 3280.357KN
Bearing Types Slewing Ring Bearing

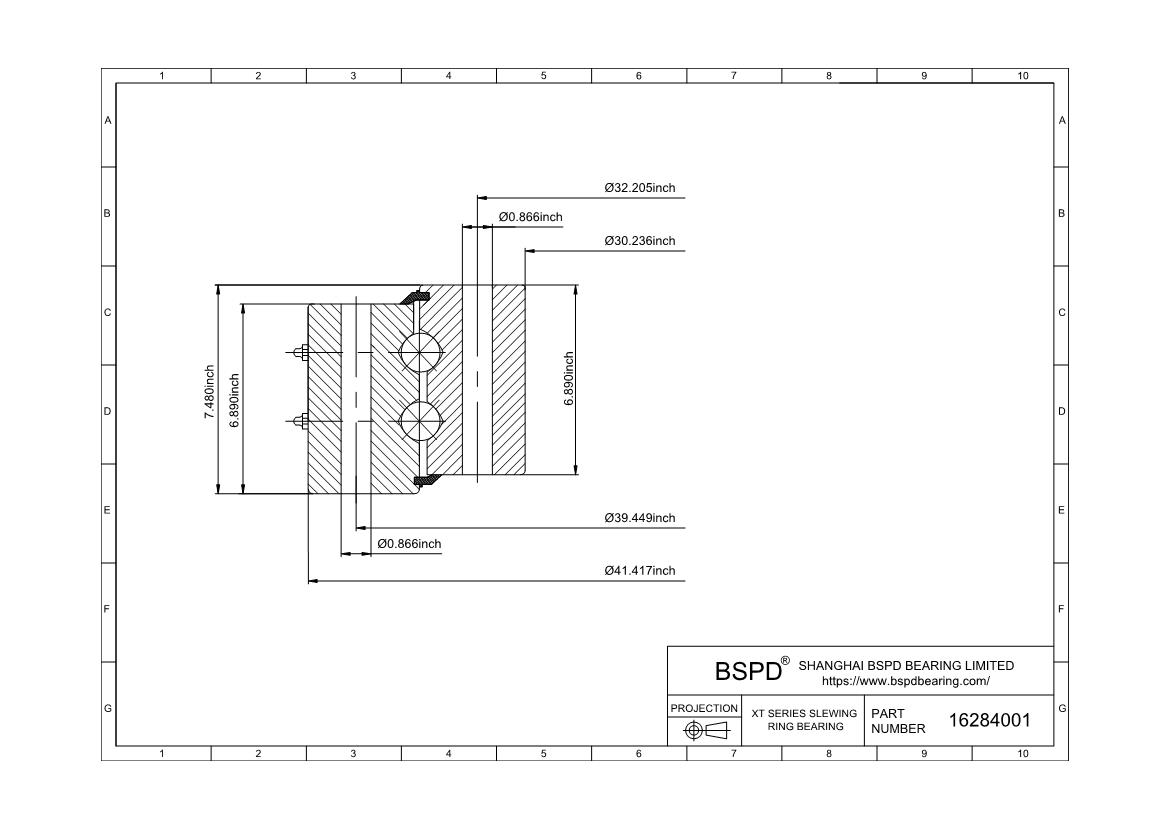

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 41.417" | 1051.99mm
Inside Diameter of Inner Ring (di) 30.236" | 767.99mm
Height of overall bearing assembly(H) 7.480" | 189.99mm
Height of outer ring(Ho) 6.890" | 175.01mm
Height of inner ring(Hi) 6.890" | 175.01mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 1,060lbs | 480.805KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 39.449" | 1002mm
Number Holes in Outer Ring (no) 36
Size of hole in outer ring(Bo) 0.866
Bolt circle in inner ring(Li) 32.205" | 818.01mm
Number Holes in Inner Ring (ni) 36
Size of hole in inner ring(Bi) 0.866
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16284001
