16290001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 113.0"; Outer Diameter: 129.0"; Width (Thickness): 5.5";

16290001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16290001
Maximum Allowable Gear Tooth Load (Fz) -
Moment Load Rating (Crm) 1,337,000ft-lbs | 5968.75KN
Bearing Types Slewing Ring Bearing

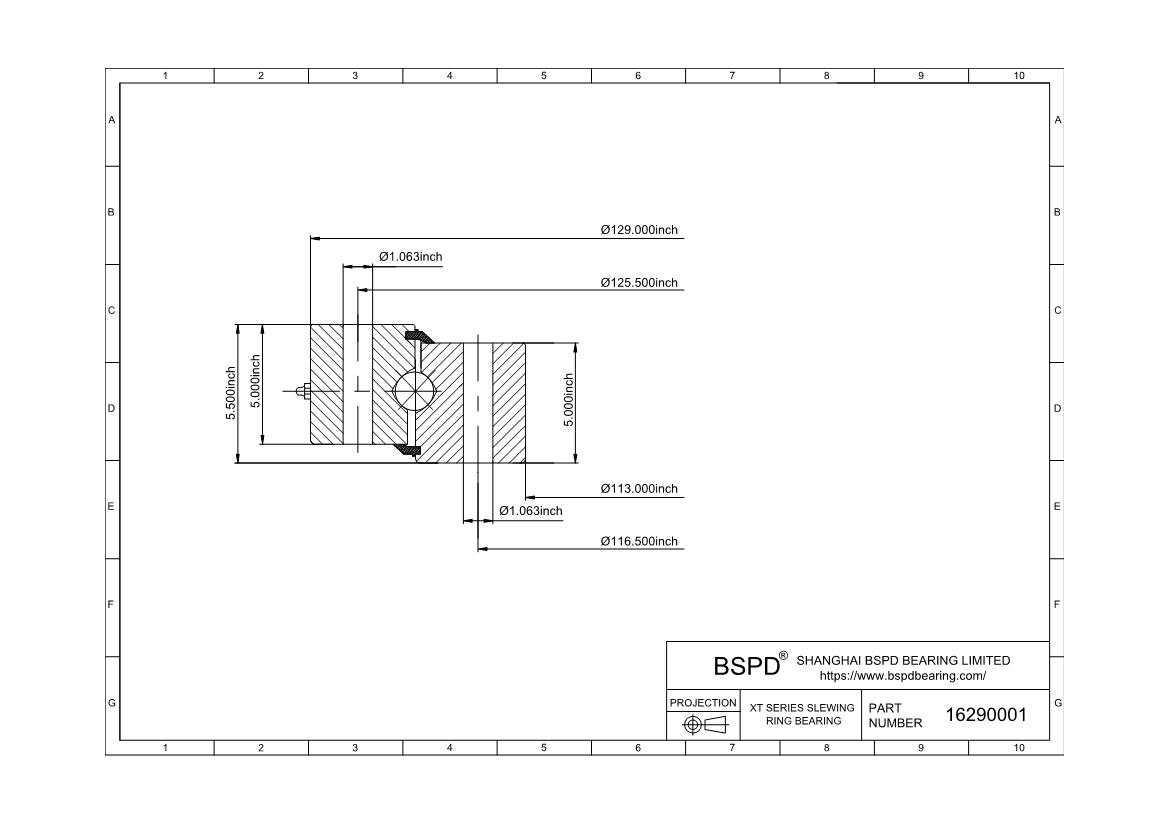

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 129.000" | 3276.6mm
Inside Diameter of Inner Ring (di) 113.000" | 2870.2mm
Height of overall bearing assembly(H) 5.500" | 139.7mm
Height of outer ring(Ho) 5.000" | 127mm
Height of inner ring(Hi) 5.000" | 127mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 3,950lbs | 1791.681KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 125.500" | 3187.7mm
Number Holes in Outer Ring (no) 72
Size of hole in outer ring(Bo) 1.063
Bolt circle in inner ring(Li) 116.500" | 2959.1mm
Number Holes in Inner Ring (ni) 72
Size of hole in inner ring(Bi) 1.063
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter (D2) -
Pd or (m) -
Number of Teeth (z2) -
Addendum modification coefficient of gear teeth(x2) -
Face width of gear teeth(b2) -
gear No gear
16290001
