16298001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 47.76"； Outer Diameter: 62.25"； Width (Thickness): 4.875";

16298001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16298001
Maximum Allowable Gear Tooth Load (Fz) 38,500
Moment Load Rating (Crm) 1,650,000ft-lbs | 7366.071KN
Bearing Types Slewing Ring Bearing

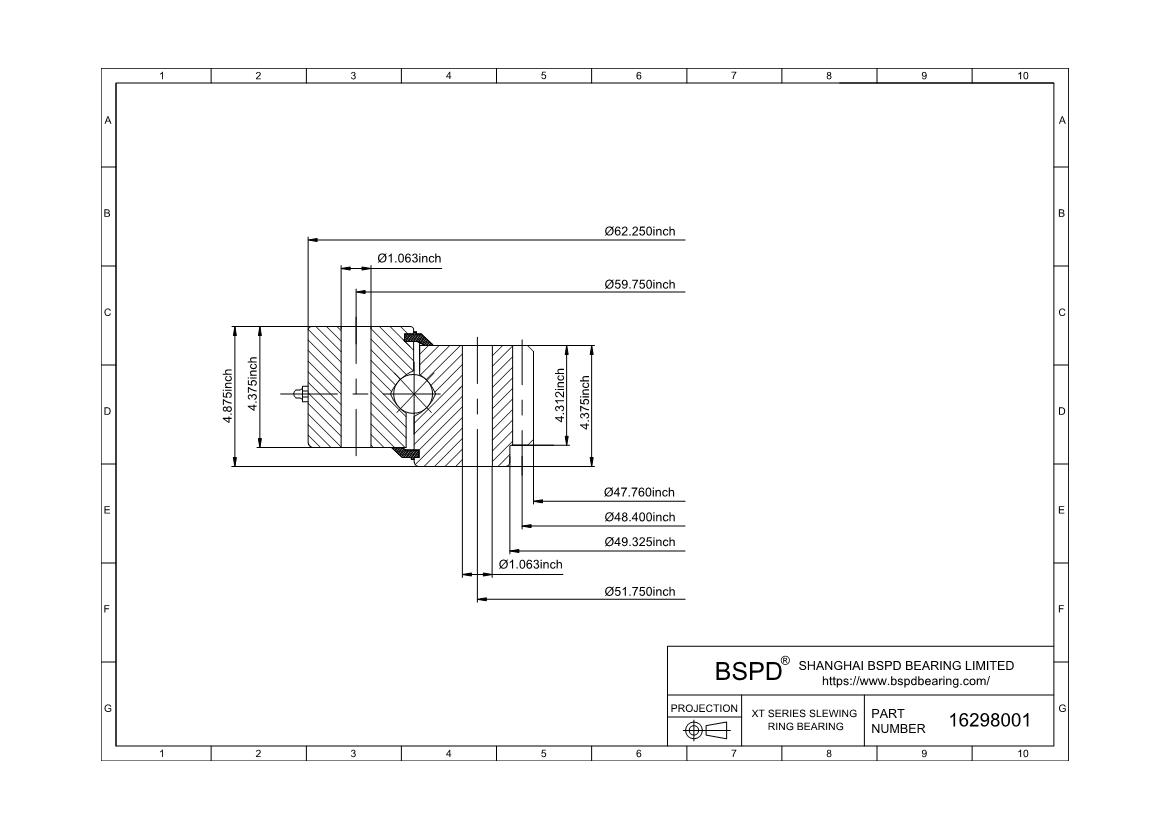

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 62.250" | 1581.15mm
Inside Diameter of Inner Ring (di) 47.760" | 1213.1mm
Height of overall bearing assembly(H) 4.875" | 123.83mm
Height of outer ring(Ho) 4.375" | 111.13mm
Height of inner ring(Hi) 4.375" | 111.13mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 49.325" | 1252.86mm
Approximate Weight (lbs) 1,370lbs | 621.418KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 59.750" | 1517.65mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 1.063
Bolt circle in inner ring(Li) 51.750" | 1314.45mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 1.063
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter (D2) 48.400" | 1229.36mm
Pd or (m) 2.5
Number of Teeth (z2) 121
Addendum modification coefficient of gear teeth(x2) 4
Face width of gear teeth(b2) 4.312
gear Internal gear
16298001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
