16299001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 57.0"； Outer Diameter: 72.5"； Width (Thickness): 6";

16299001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16299001
Maximum Allowable Gear Tooth Load (Fz) 46,600
Moment Load Rating (Crm) 1,831,000ft-lbs | 8174.107KN
Bearing Types Slewing Ring Bearing

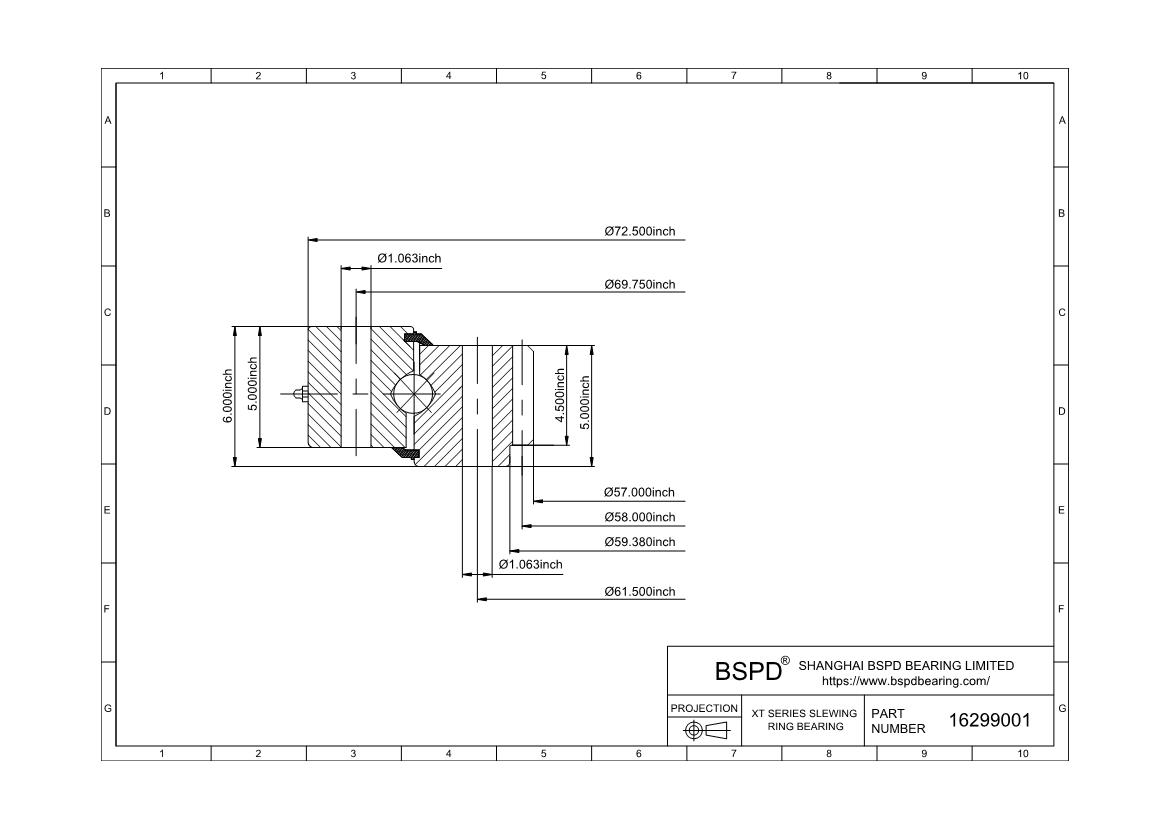

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 72.500" | 1841.5mm
Inside Diameter of Inner Ring (di) 57.000" | 1447.8mm
Height of overall bearing assembly(H) 6.000" | 152.4mm
Height of outer ring(Ho) 5.000" | 127mm
Height of inner ring(Hi) 5.000" | 127mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 59.380" | 1508.25mm
Approximate Weight (lbs) 1,900lbs | 861.821KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 69.750" | 1771.65mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 1.063
Bolt circle in inner ring(Li) 61.500" | 1562.1mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 1.063
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter (D2) 58.000" | 1473.2mm
Pd or (m) 2
Number of Teeth (z2) 116
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 4.500
gear Internal gear
16299001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
