16303001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 135.039"； Outer Diameter: 148.425"； Width (Thickness): 4.724";

16303001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16303001
Maximum Allowable Gear Tooth Load (Fz) 25,300
Moment Load Rating (Crm) 1,013,000ft-lbs | 4522.321KN
Bearing Types Slewing Ring Bearing

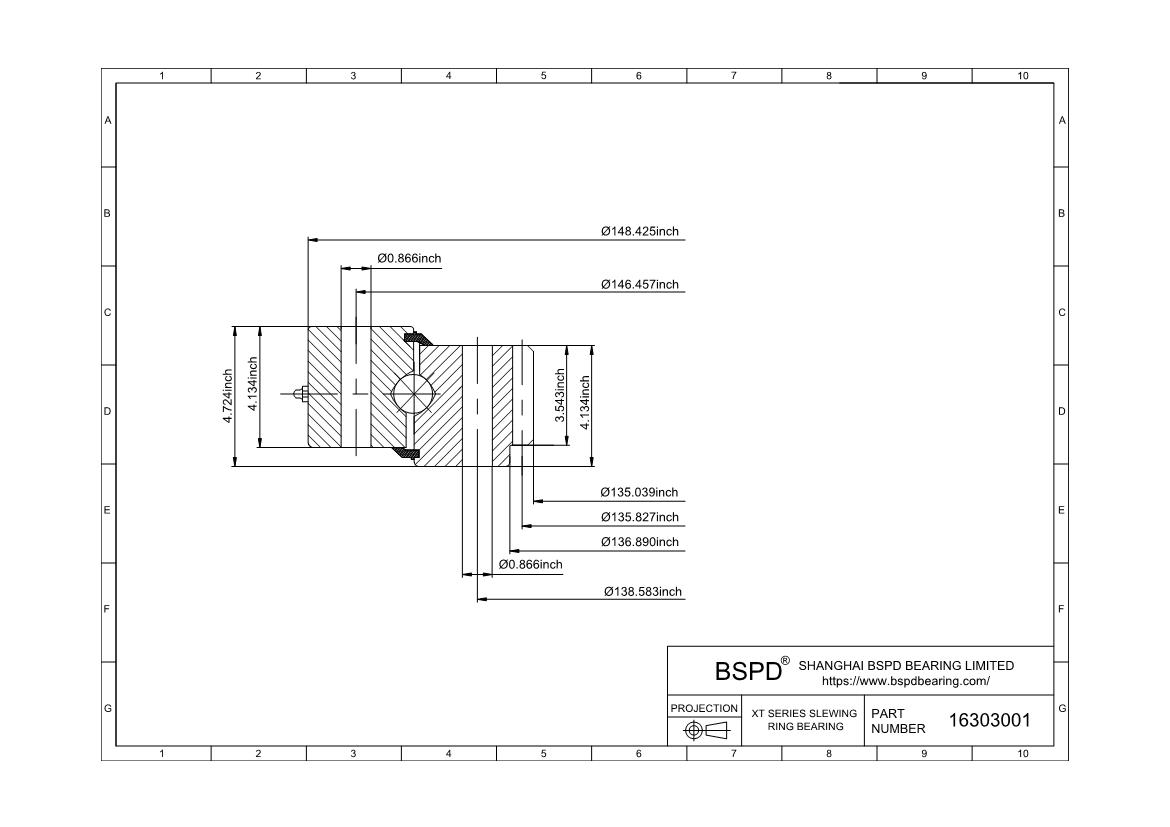

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 148.425" | 3770mm
Inside Diameter of Inner Ring (di) 135.039" | 3429.99mm
Height of overall bearing assembly(H) 4.724" | 119.99mm
Height of outer ring(Ho) 4.134" | 105mm
Height of inner ring(Hi) 4.134" | 105mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 136.890" | 3477.01mm
Approximate Weight (lbs) 3,000lbs | 1360.77KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 146.457" | 3720.01mm
Number Holes in Outer Ring (no) 72
Size of hole in outer ring(Bo) 0.866
Bolt circle in inner ring(Li) 138.583" | 3520.01mm
Number Holes in Inner Ring (ni) 72
Size of hole in inner ring(Bi) 0.866
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter (D2) 135.827" | 3450.01mm
Pd or (m) 10
Number of Teeth (z2) 345
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 3.543
gear Internal gear
16303001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
