16306001 Kaydon Slewing Bearings

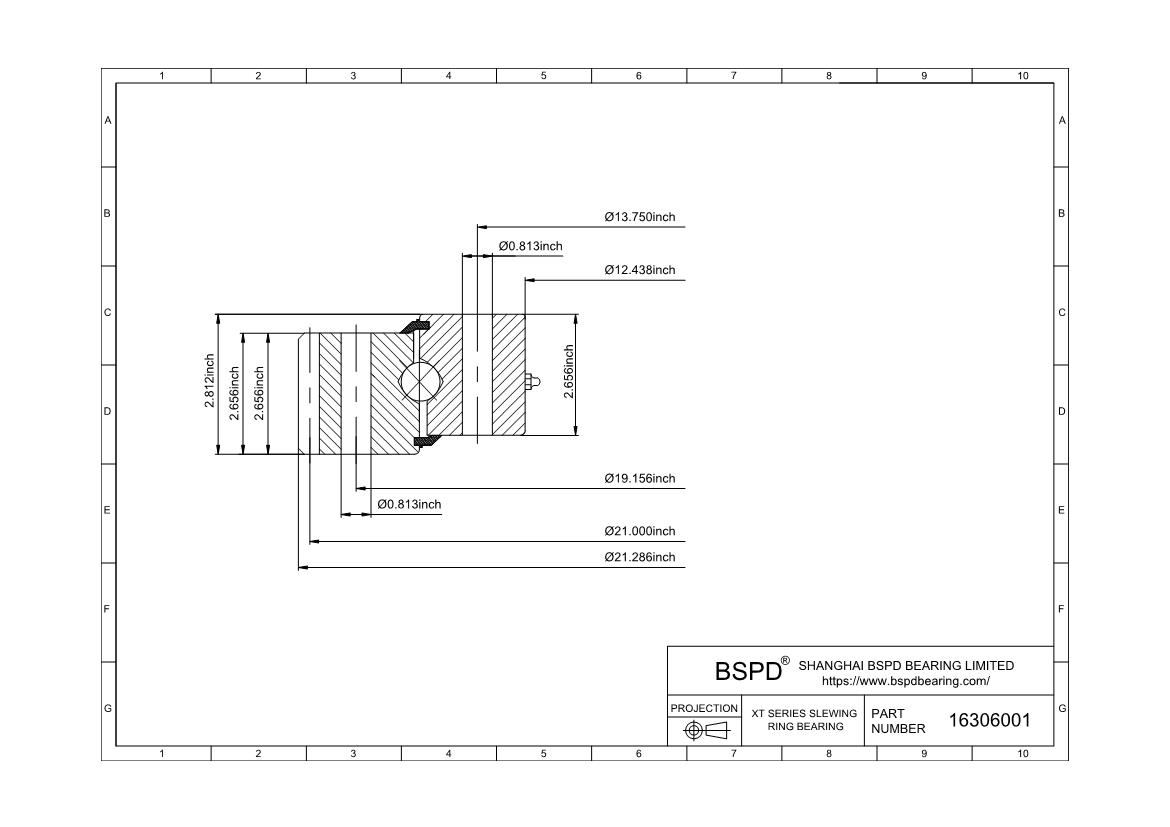

Dimensions: Bore (Inner) Diameter: 12.438"； Outer Diameter: 21.286"； Width (Thickness): 2.812";

16306001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16306001
Maximum Allowable Gear Tooth Load (Fz) 10,570
Moment Load Rating (Crm) 122,500ft-lbs | 546.875KN
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 21.286" | 540.66mm
Inside Diameter of Inner Ring (di) 12.438" | 315.93mm
Height of overall bearing assembly(H) 2.812" | 71.42mm
Height of outer ring(Ho) 2.656" | 67.46mm
Height of inner ring(Hi) 2.656" | 67.46mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 140lbs | 63.503KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 19.156" | 486.56mm
Number Holes in Outer Ring (no) 16
Size of hole in outer ring(Bo) 0.813
Bolt circle in inner ring(Li) 13.750" | 349.25mm
Number Holes in Inner Ring (ni) 18
Size of hole in inner ring(Bi) 0.813
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FS
Pitch Diameter (D2) 21.000" | 533.4mm
Pd or (m) 5/7
Number of Teeth (z2) 105
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 2.656
gear External gear
16306001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
