16309001 Kaydon Slewing Bearings

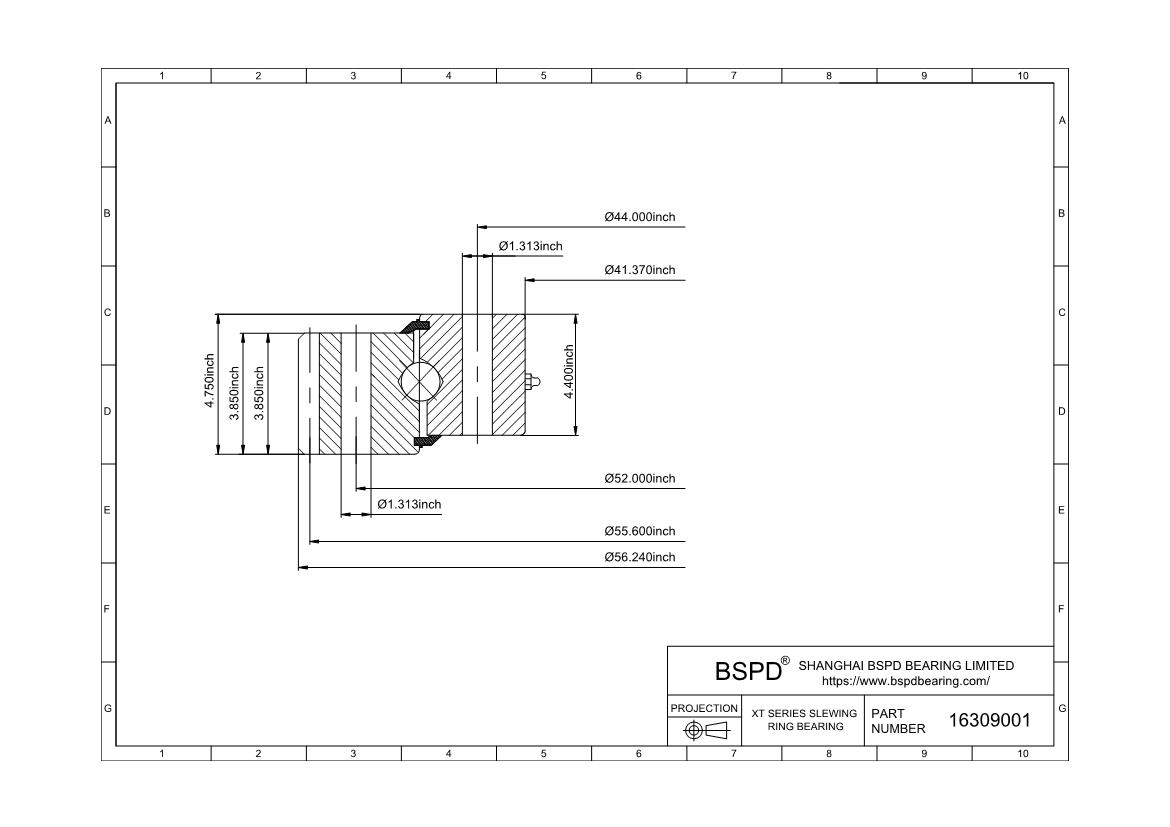

Dimensions: Bore (Inner) Diameter: 41.37"; Outer Diameter: 56.24"; Width (Thickness): 4.75";

16309001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16309001
Maximum Allowable Gear Tooth Load (Fz) 29,300
Moment Load Rating (Crm) 1,220,000ft-lbs | 5446.429KN
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 56.240" | 1428.5mm
Inside Diameter of Inner Ring (di) 41.370" | 1050.8mm
Height of overall bearing assembly(H) 4.750" | 120.65mm
Height of outer ring(Ho) 3.850" | 97.79mm
Height of inner ring(Hi) 4.400" | 111.76mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 1,133lbs | 513.917KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 52.000" | 1320.8mm
Number Holes in Outer Ring (no) 28
Size of hole in outer ring(Bo) 1.313
Bolt circle in inner ring(Li) 44.000" | 1117.6mm
Number Holes in Inner Ring (ni) 28
Size of hole in inner ring(Bi) 1.313
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter (D2) 55.600" | 1412.24mm
Pd or (m) 2.5
Number of Teeth (z2) 139
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 3.850
gear External gear
