16312001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 66.75"; Outer Diameter: 85.067"; Width (Thickness): 7.12";

16312001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16312001
Maximum Allowable Gear Tooth Load (Fz) 81,900
Moment Load Rating (Crm) 3,575,000ft-lbs | 15959.821KN
Bearing Types Slewing Ring Bearing

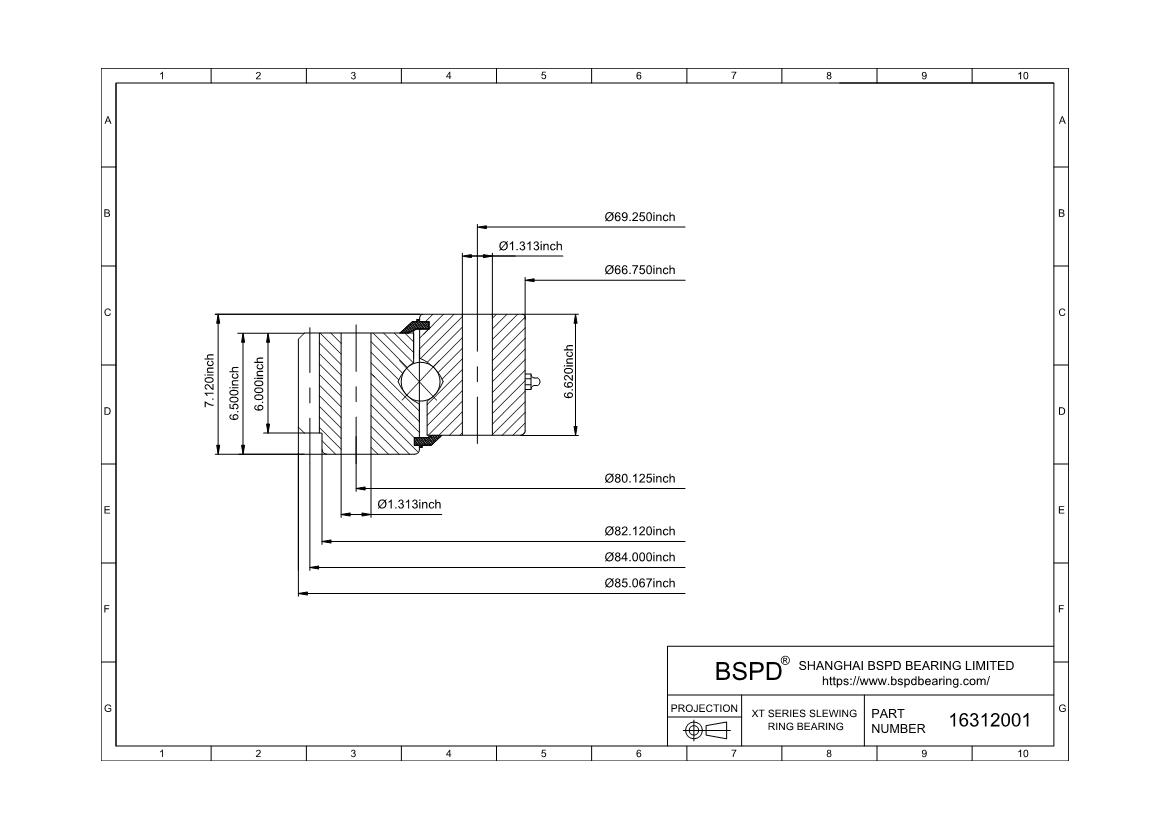

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 85.067" | 2160.7mm
Inside Diameter of Inner Ring (di) 66.750" | 1695.45mm
Height of overall bearing assembly(H) 7.120" | 180.85mm
Height of outer ring(Ho) 6.500" | 165.1mm
Height of inner ring(Hi) 6.620" | 168.15mm
External diameter on outer ring(Dr) 82.120" | 2085.85mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 3,410lbs | 1546.742KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 80.125" | 2035.18mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 1.313
Bolt circle in inner ring(Li) 69.250" | 1758.95mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 1.313
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter (D2) 84.000" | 2133.6mm
Pd or (m) 1.5
Number of Teeth (z2) 126
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 6.000
gear External gear
16312001
