16321001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 26.625"; Outer Diameter: 35.312"; Width (Thickness): 2.953";

16321001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16321001
Moment(ft-lbs) 116170lbs | 518.616KN
Thrust(lbs) 91980lbs | 410.625KN
Radial(lbs) 81310lbs | 362.991KN
Maximum Allowable Gear Tooth Load (Fz) -
Bearing Types Slewing Ring Bearing

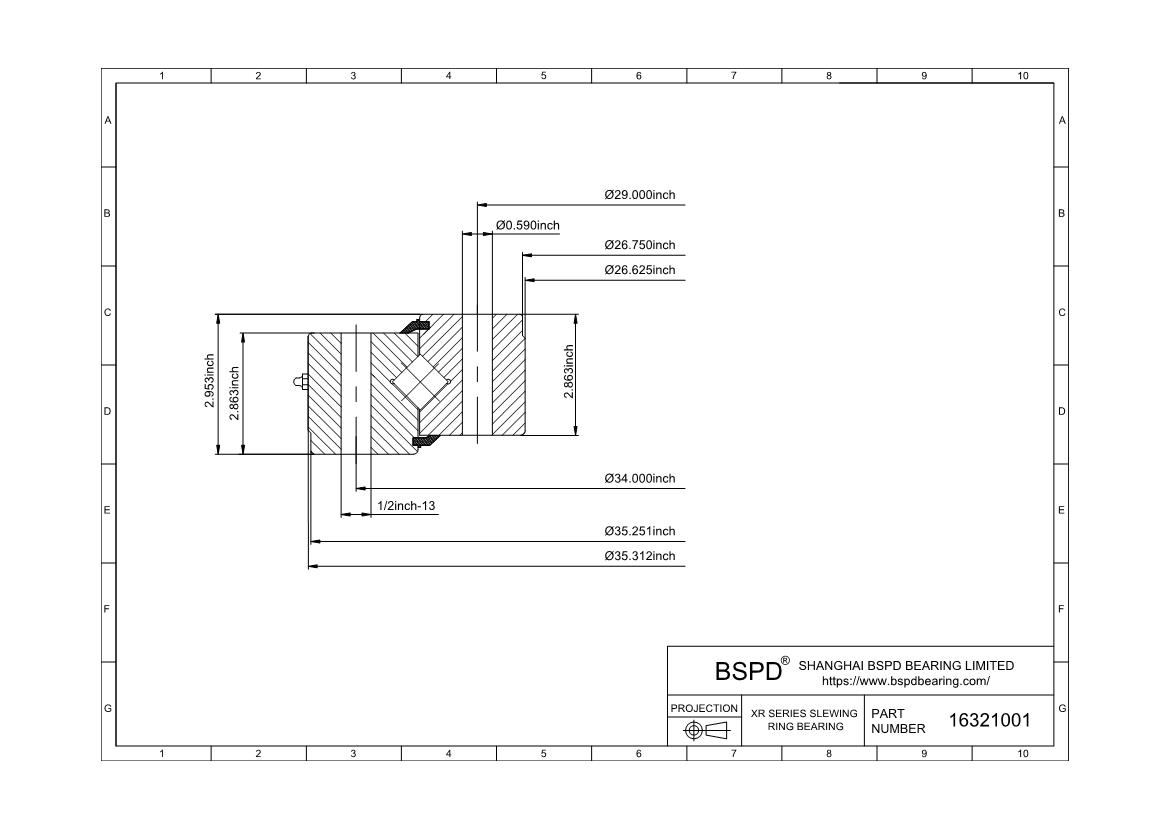

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 35.312" | 896.92mm
Inside Diameter of Inner Ring (di) 26.625" | 676.28mm
Height of overall bearing assembly(H) 2.953" | 75.01mm
Height of outer ring(Ho) 2.863" | 72.72mm
Height of inner ring(Hi) 2.863" | 72.72mm
External diameter on outer ring(Dr) 35.251" | 895.38mm
Internal diameter on inner ring(dr) 26.75" | 679.45mm
Approximate Weight (lbs) 325lbs | 147.417KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 34" | 863.6mm
Number Holes in Outer Ring (no) 24
Size of hole in outer ring(Bo) 1/2-13
Bolt circle in inner ring(Li) 29" | 736.6mm
Number Holes in Inner Ring (ni) 24
Size of hole in inner ring(Bi) 0.59
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16321001
