16322001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 34.25"; Outer Diameter: 46.25"; Width (Thickness): 4.25";

16322001
Slewing Bearings of similar size
same outer diameter
Product Attributes
Specifications
Part Number 16322001
Moment(ft-lbs) 425900lbs | 1901.339KN
Thrust(lbs) 270010lbs | 1205.402KN
Radial(lbs) 235420lbs | 1050.982KN
Maximum Allowable Gear Tooth Load (Fz) -
Bearing Types Slewing Ring Bearing

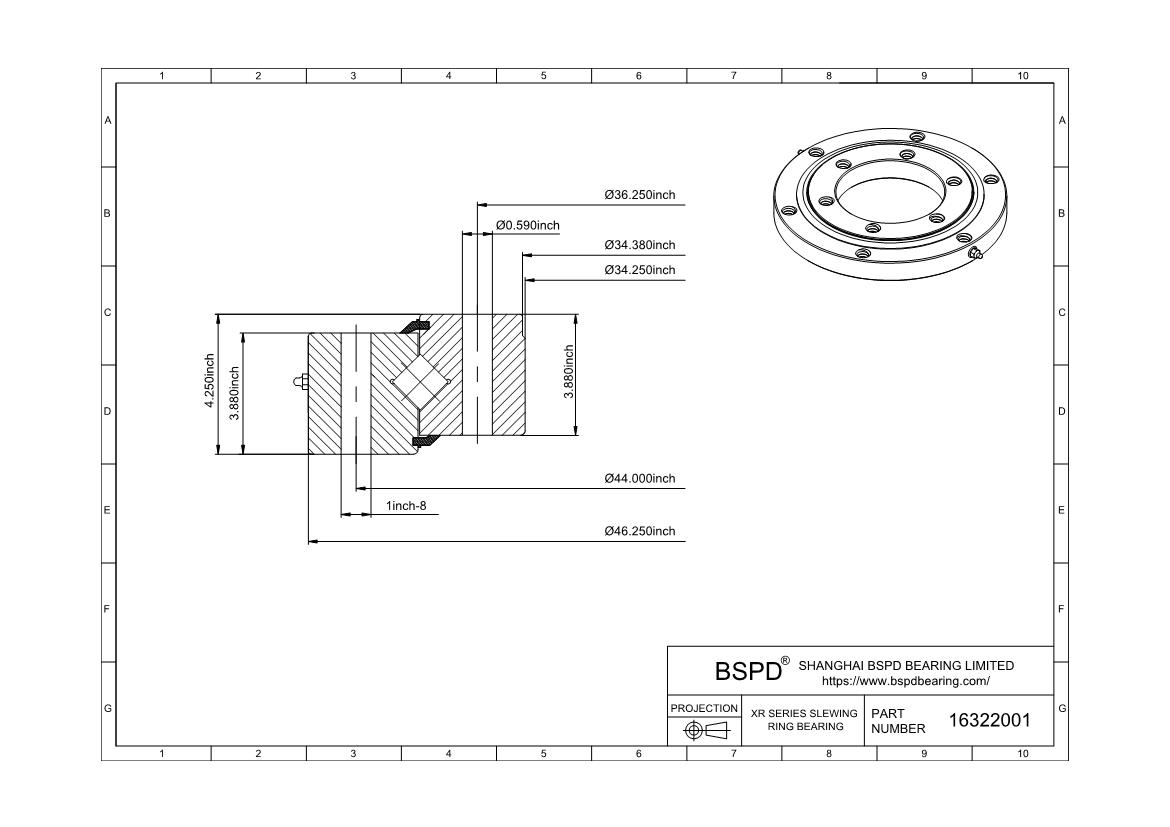

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 46.25" | 1174.75mm
Inside Diameter of Inner Ring (di) 34.25" | 869.95mm
Height of overall bearing assembly(H) 4.25" | 107.95mm
Height of outer ring(Ho) 3.88" | 98.55mm
Height of inner ring(Hi) 3.88" | 98.55mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 34.38" | 873.25mm
Approximate Weight (lbs) 765lbs | 346.996KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 44" | 1117.6mm
Number Holes in Outer Ring (no) 28
Size of hole in outer ring(Bo) 1-8
Bolt circle in inner ring(Li) 36.25" | 920.75mm
Number Holes in Inner Ring (ni) 28
Size of hole in inner ring(Bi) 1.063
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16322001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
