16323001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 46.77"; Outer Diameter: 56.38"; Width (Thickness): 3.82";

16323001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16323001
Moment(ft-lbs) 482960lbs | 2156.071KN
Thrust(lbs) 237380lbs | 1059.732KN
Radial(lbs) 209680lbs | 936.071KN
Maximum Allowable Gear Tooth Load (Fz) -
Bearing Types Slewing Ring Bearing

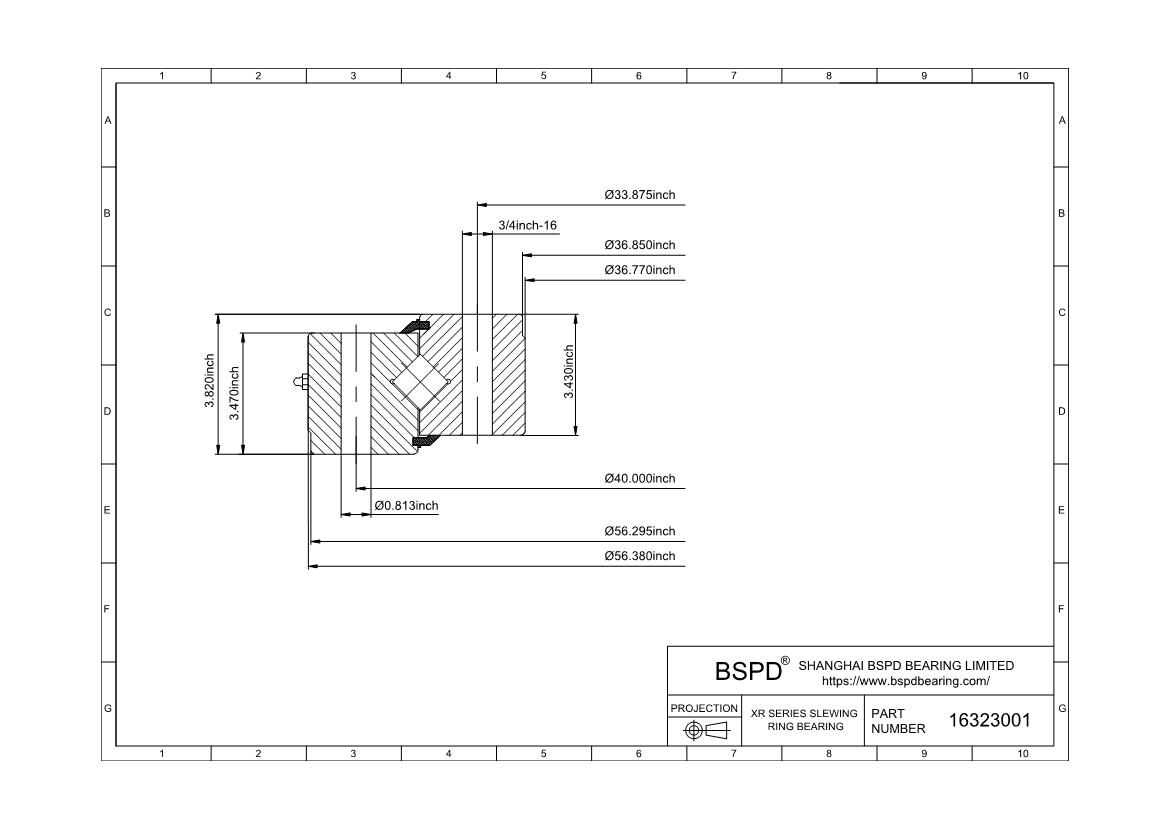

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 56.38" | 1432.05mm
Inside Diameter of Inner Ring (di) 46.77" | 1187.96mm
Height of overall bearing assembly(H) 3.82" | 97.03mm
Height of outer ring(Ho) 3.47" | 88.14mm
Height of inner ring(Hi) 3.43" | 87.12mm
External diameter on outer ring(Dr) 56.295" | 1429.89mm
Internal diameter on inner ring(dr) 46.85" | 1189.99mm
Approximate Weight (lbs) 710lbs | 322.049KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 40" | 1016mm
Number Holes in Outer Ring (no) 36
Size of hole in outer ring(Bo) 0.813
Bolt circle in inner ring(Li) 33.875" | 860.43mm
Number Holes in Inner Ring (ni) 36
Size of hole in inner ring(Bi) 3/4-16
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16323001
