16324001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 74.0"； Outer Diameter: 85.0"； Width (Thickness): 3.75";

16324001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16324001
Moment(ft-lbs) 956430lbs | 4269.777KN
Thrust(lbs) 300410lbs | 1341.116KN
Radial(lbs) 267330lbs | 1193.438KN
Maximum Allowable Gear Tooth Load (Fz) -
Bearing Types Slewing Ring Bearing

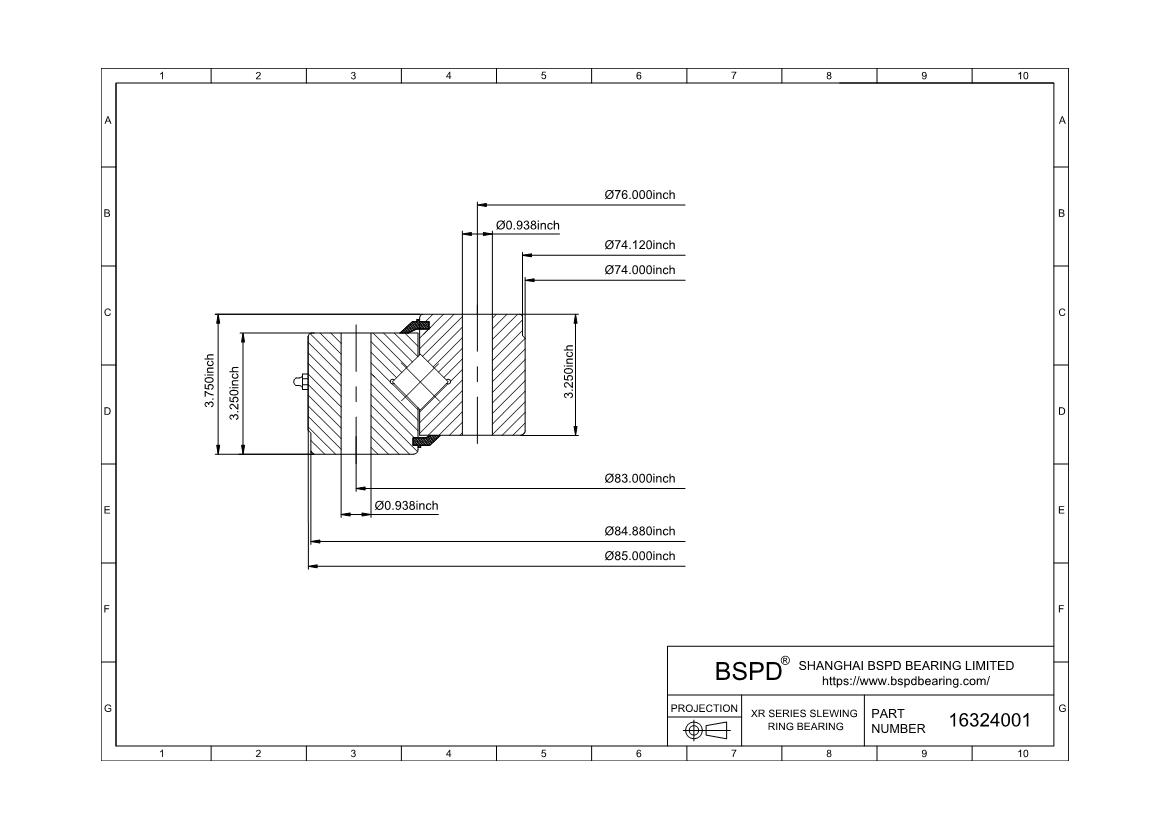

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 85" | 2159mm
Inside Diameter of Inner Ring (di) 74" | 1879.6mm
Height of overall bearing assembly(H) 3.75" | 95.25mm
Height of outer ring(Ho) 3.25" | 82.55mm
Height of inner ring(Hi) 3.25" | 82.55mm
External diameter on outer ring(Dr) 84.88" | 2155.95mm
Internal diameter on inner ring(dr) 74.12" | 1882.65mm
Approximate Weight (lbs) 1190lbs | 539.772KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 83" | 2108.2mm
Number Holes in Outer Ring (no) 42
Size of hole in outer ring(Bo) 0.938
Bolt circle in inner ring(Li) 76" | 1930.4mm
Number Holes in Inner Ring (ni) 42
Size of hole in inner ring(Bi) 0.938
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16324001
