16326001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 112.205"； Outer Diameter: 131.89"； Width (Thickness): 7.847";

16326001
Slewing Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
Specifications
Part Number 16326001
Moment(ft-lbs) 4185500lbs | 18685.268KN
Thrust(lbs) 858130lbs | 3830.938KN
Radial(lbs) 762050lbs | 3402.009KN
Maximum Allowable Gear Tooth Load (Fz) -
Bearing Types Slewing Ring Bearing

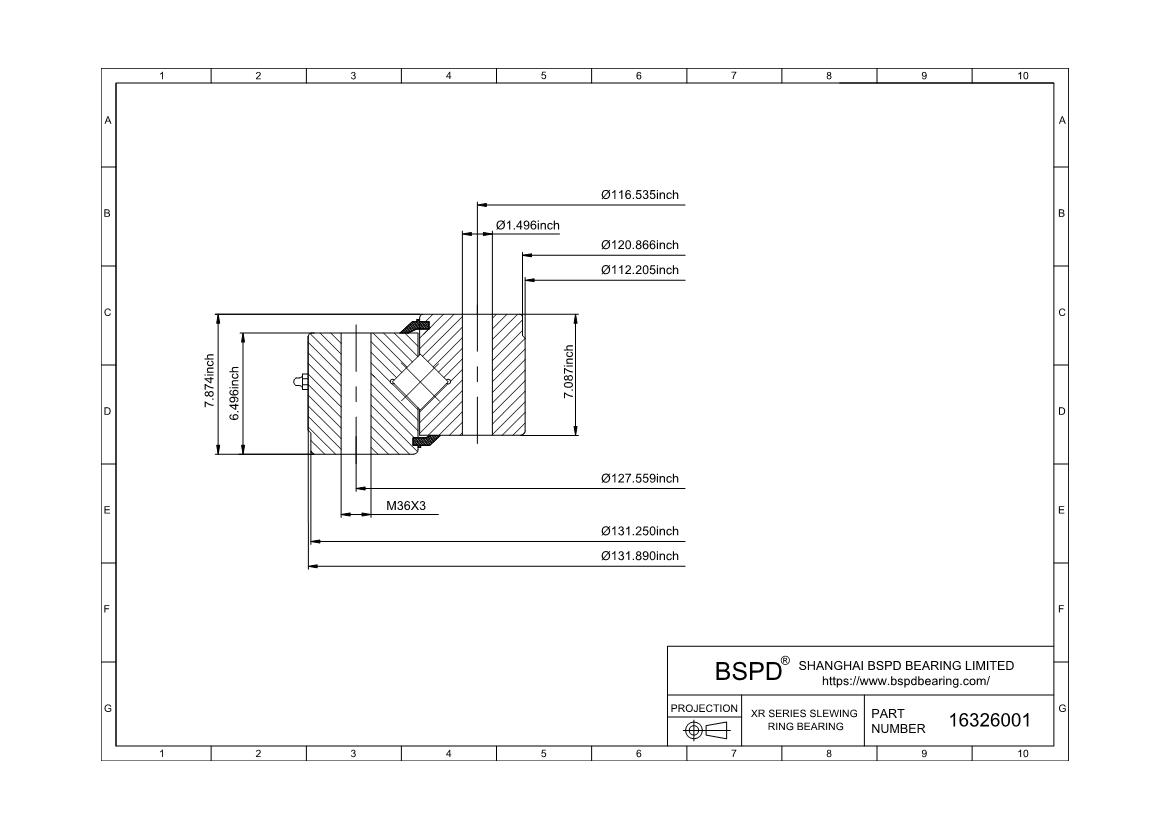

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 131.89" | 3350.01mm
Inside Diameter of Inner Ring (di) 112.205" | 2850.01mm
Height of overall bearing assembly(H) 7.874" | 200mm
Height of outer ring(Ho) 6.496" | 165mm
Height of inner ring(Hi) 7.087" | 180.01mm
External diameter on outer ring(Dr) 131.25" | 3333.75mm
Internal diameter on inner ring(dr) 120.866" | 3070mm
Approximate Weight (lbs) 6500lbs | 2948.335KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 127.559" | 3240mm
Number Holes in Outer Ring (no) 40
Size of hole in outer ring(Bo) M36X3
Bolt circle in inner ring(Li) 116.535" | 2959.99mm
Number Holes in Inner Ring (ni) 40
Size of hole in inner ring(Bi) 1.496
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form -
Pitch Diameter of Gear (D2) -
Diametral Pitch (Pd) -
Number of Gear Teeth(z2) -
("+" / "-" sign increases tooth thickness at D2(X2) -
Face Width of Gear Teeth(b2) -
gear No
16326001
