16331001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 30.828"； Outer Diameter: 41.97"； Width (Thickness): 3.35";

16331001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16331001
Moment(ft-lbs) 211160lbs | 942.679KN
Thrust(lbs) 142740lbs | 637.232KN
Radial(lbs) 125790lbs | 561.563KN
Maximum Allowable Gear Tooth Load (Fz) 22820lbs | 101.875KN
Bearing Types Slewing Ring Bearing

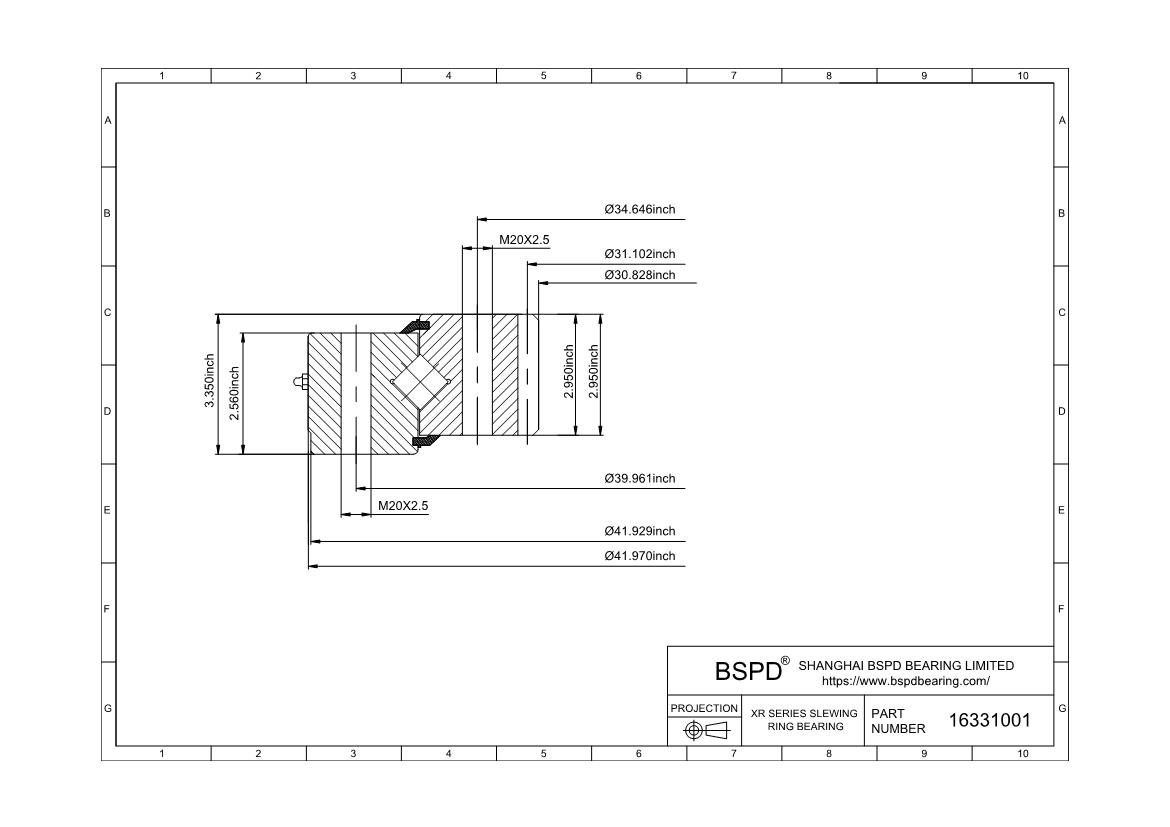

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 41.97" | 1066.04mm
Inside Diameter of Inner Ring (di) 30.828" | 783.03mm
Height of overall bearing assembly(H) 3.35" | 85.09mm
Height of outer ring(Ho) 2.56" | 65.02mm
Height of inner ring(Hi) 2.95" | 74.93mm
External diameter on outer ring(Dr) 41.929" | 1065mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 400lbs | 181.436KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 39.961" | 1015.01mm
Number Holes in Outer Ring (no) 24
Size of hole in outer ring(Bo) M20X2.5
Bolt circle in inner ring(Li) 34.646" | 880.01mm
Number Holes in Inner Ring (ni) 24
Size of hole in inner ring(Bi) M20X2.5
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 31.102" | 789.99mm
Gear module（M） 10
Number of Gear Teeth(z2) 79
("+" / "-" sign increases tooth thickness at D2(X2) -0.625
Face Width of Gear Teeth(b2) 2.95
gear Internal
