16333001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 62.913"; Outer Diameter: 78.819"; Width (Thickness): 5.906";

16333001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16333001
Moment(ft-lbs) 1315740lbs | 5873.839KN
Thrust(lbs) 459660lbs | 2052.054KN
Radial(lbs) 406070lbs | 1812.813KN
Maximum Allowable Gear Tooth Load (Fz) 40350lbs | 180.134KN
Bearing Types Slewing Ring Bearing

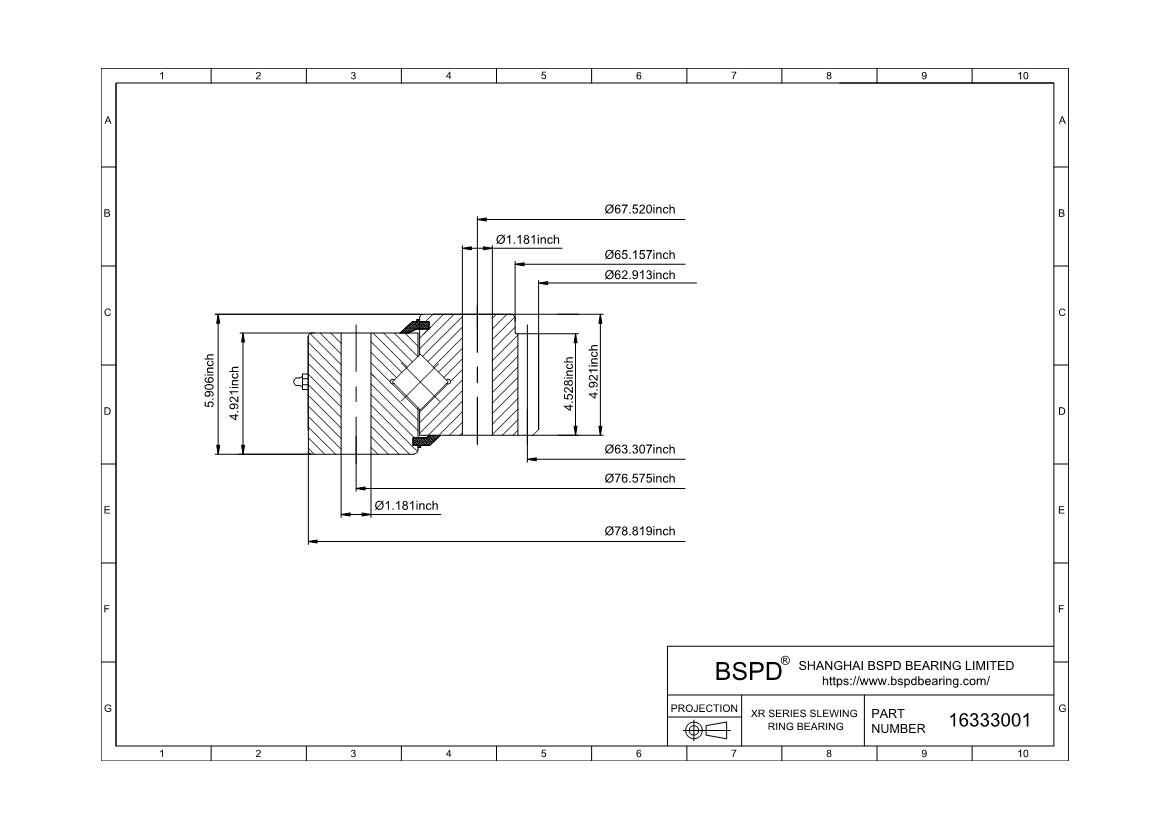

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 78.819" | 2002mm
Inside Diameter of Inner Ring (di) 62.913" | 1597.99mm
Height of overall bearing assembly(H) 5.906" | 150.01mm
Height of outer ring(Ho) 4.921" | 124.99mm
Height of inner ring(Hi) 4.921" | 124.99mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 65.157" | 1654.99mm
Approximate Weight (lbs) 2050lbs | 929.86KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 76.575" | 1945.01mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 1.181
Bolt circle in inner ring(Li) 67.52" | 1715.01mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 1.181
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 63.307" | 1608mm
Gear module(M) 12
Number of Gear Teeth(z2) 134
("+" / "-" sign increases tooth thickness at D2(X2) -0.5
Face Width of Gear Teeth(b2) 4.528
gear Internal
16333001
