16334001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 95.0"； Outer Diameter: 114.0"； Width (Thickness): 6";

16334001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16334001
Moment(ft-lbs) 2389570lbs | 10667.723KN
Thrust(lbs) 563230lbs | 2514.42KN
Radial(lbs) 500930lbs | 2236.295KN
Maximum Allowable Gear Tooth Load (Fz) 54550lbs | 243.527KN
Bearing Types Slewing Ring Bearing

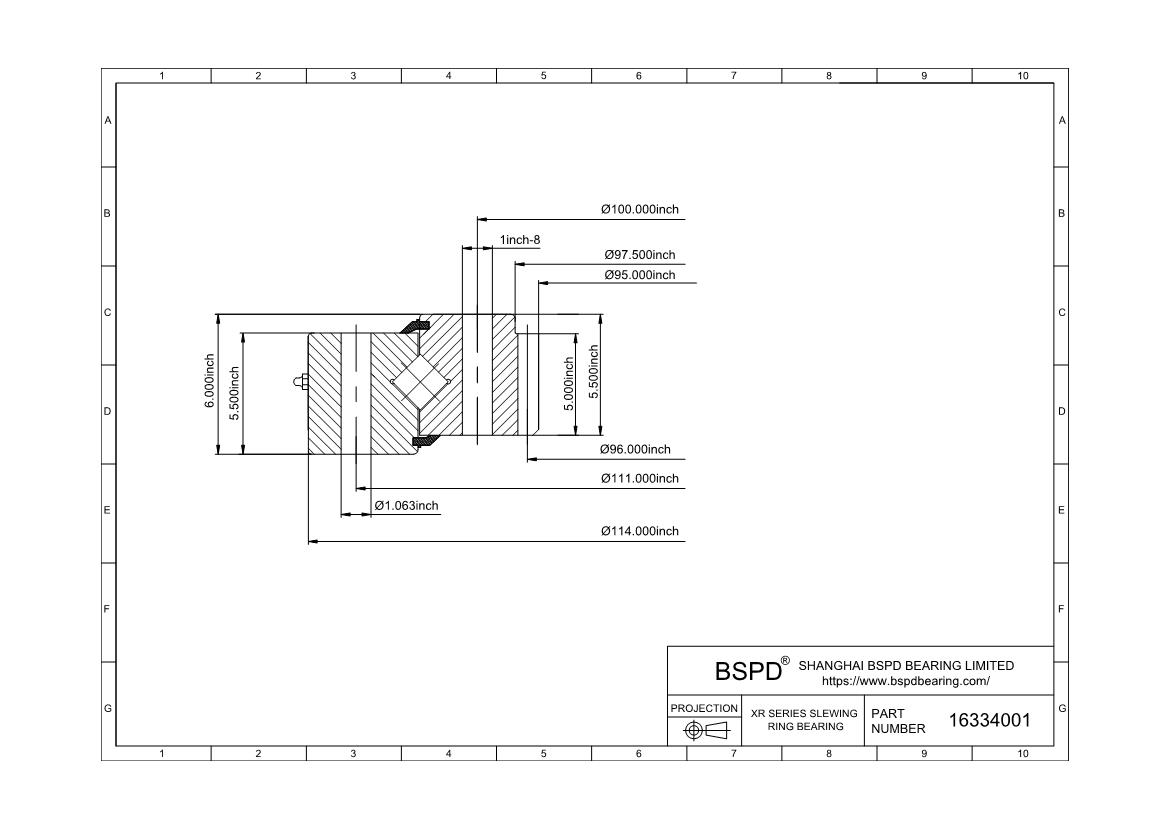

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 114" | 2895.6mm
Inside Diameter of Inner Ring (di) 95" | 2413mm
Height of overall bearing assembly(H) 6" | 152.4mm
Height of outer ring(Ho) 5.5" | 139.7mm
Height of inner ring(Hi) 5.5" | 139.7mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 97.5" | 2476.5mm
Approximate Weight (lbs) 4250lbs | 1927.758KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 111" | 2819.4mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 1063
Bolt circle in inner ring(Li) 100" | 2540mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 1/8
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 96" | 2438.4mm
Diametral Pitch (Pd) 2
Number of Gear Teeth(z2) 192
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 5
gear Internal
16334001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
