16336001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 123.2"; Outer Diameter: 142.0"; Width (Thickness): 6";

16336001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16336001
Moment(ft-lbs) 4057130lbs | 18112.188KN
Thrust(lbs) 758460lbs | 3385.982KN
Radial(lbs) 675310lbs | 3014.777KN
Maximum Allowable Gear Tooth Load (Fz) 50440lbs | 225.179KN
Bearing Types Slewing Ring Bearing

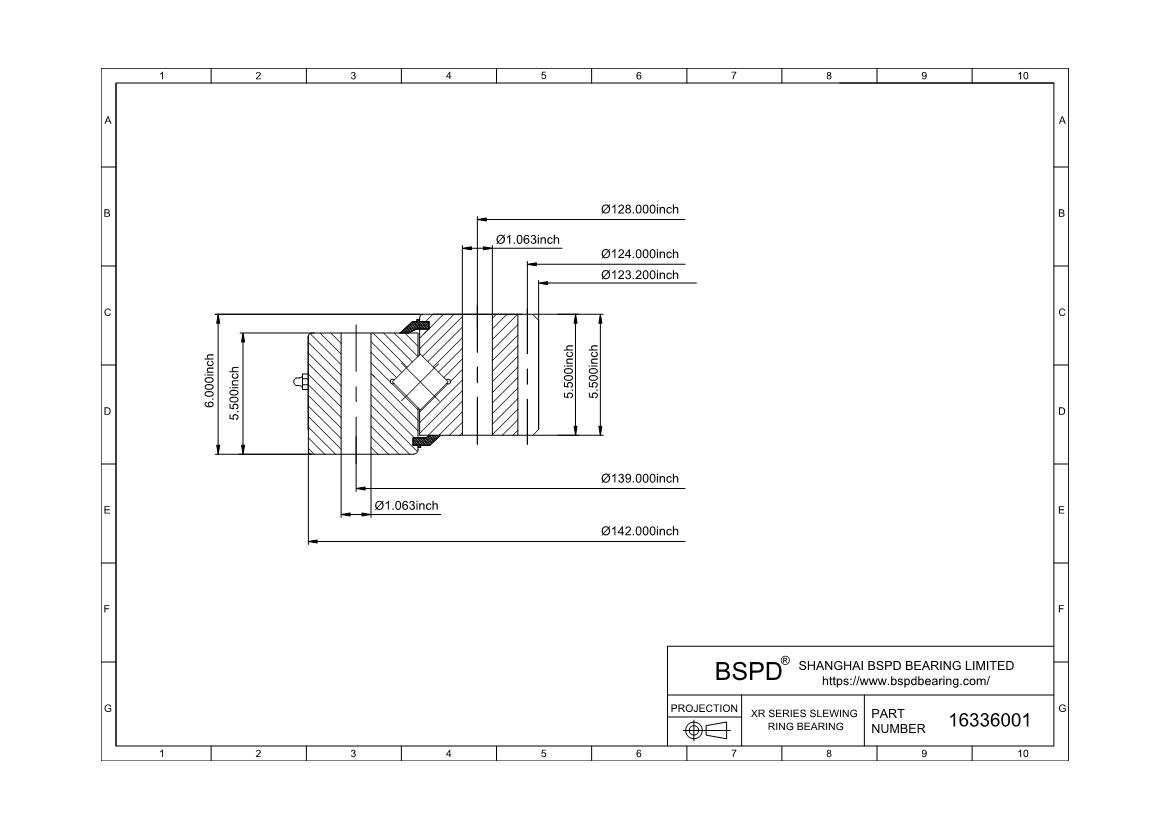

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 142" | 3606.8mm
Inside Diameter of Inner Ring (di) 123.2" | 3129.28mm
Height of overall bearing assembly(H) 6" | 152.4mm
Height of outer ring(Ho) 5.5" | 139.7mm
Height of inner ring(Hi) 5.5" | 139.7mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 5370lbs | 2435.778KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 139" | 3530.6mm
Number Holes in Outer Ring (no) 72
Size of hole in outer ring(Bo) 1.063
Bolt circle in inner ring(Li) 128" | 3251.2mm
Number Holes in Inner Ring (ni) 72
Size of hole in inner ring(Bi) 1.063
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter of Gear (D2) 124" | 3149.6mm
Diametral Pitch (Pd) 2
Number of Gear Teeth(z2) 248
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 5.5
gear Internal
16336001
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
