16338001 Kaydon Slewing Bearings

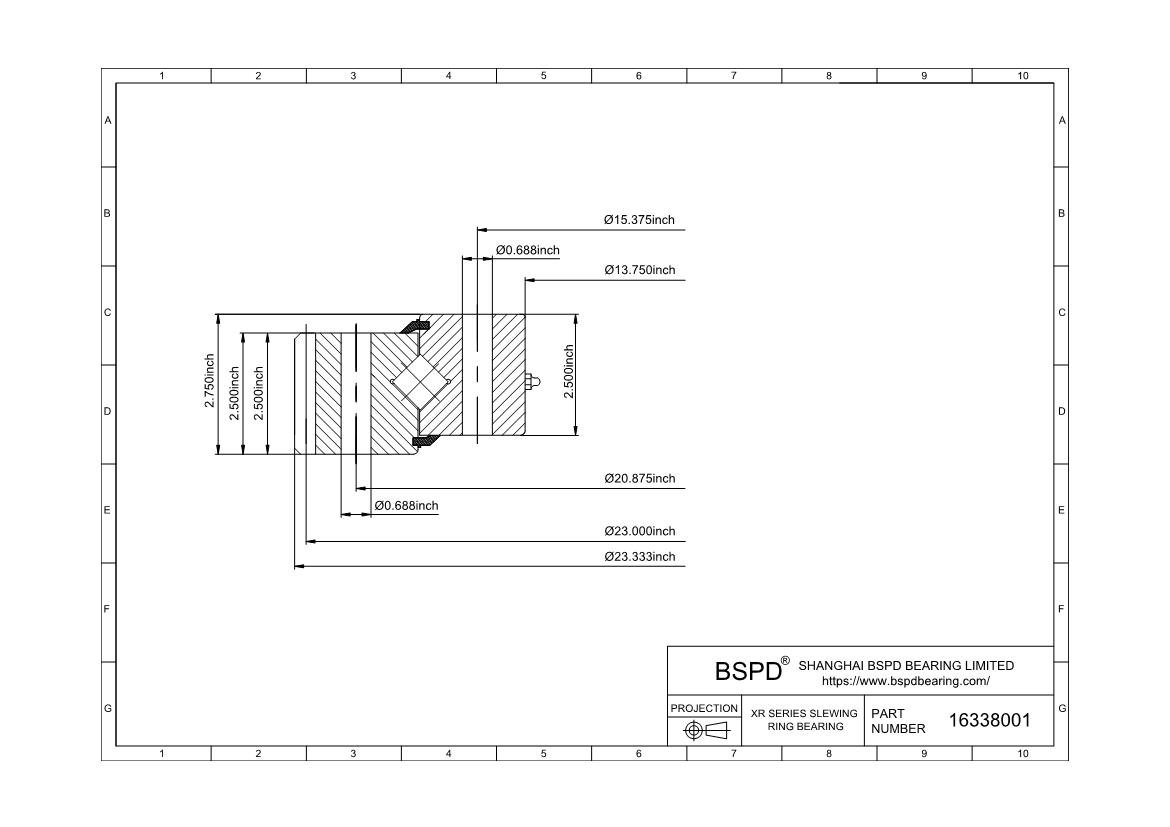

Dimensions: Bore (Inner) Diameter: 13.75"; Outer Diameter: 23.333"; Width (Thickness): 2.75";

16338001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16338001
Moment(ft-lbs) 69470lbs | 310.134KN
Thrust(lbs) 99260lbs | 443.125KN
Radial(lbs) 85170lbs | 380.223KN
Maximum Allowable Gear Tooth Load (Fz) 7430lbs | 33.17KN
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 23.333" | 592.66mm
Inside Diameter of Inner Ring (di) 13.75" | 349.25mm
Height of overall bearing assembly(H) 2.75" | 69.85mm
Height of outer ring(Ho) 2.5" | 63.5mm
Height of inner ring(Hi) 2.5" | 63.5mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 175lbs | 79.378KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 20.875" | 530.23mm
Number Holes in Outer Ring (no) 12
Size of hole in outer ring(Bo) 0.688
Bolt circle in inner ring(Li) 15.375" | 390.53mm
Number Holes in Inner Ring (ni) 12
Size of hole in inner ring(Bi) 0.688
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 23" | 584.2mm
Diametral Pitch (Pd) 6
Number of Gear Teeth(z2) 138
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 2.5
gear External
16338001
