16341001 Kaydon Slewing Bearings

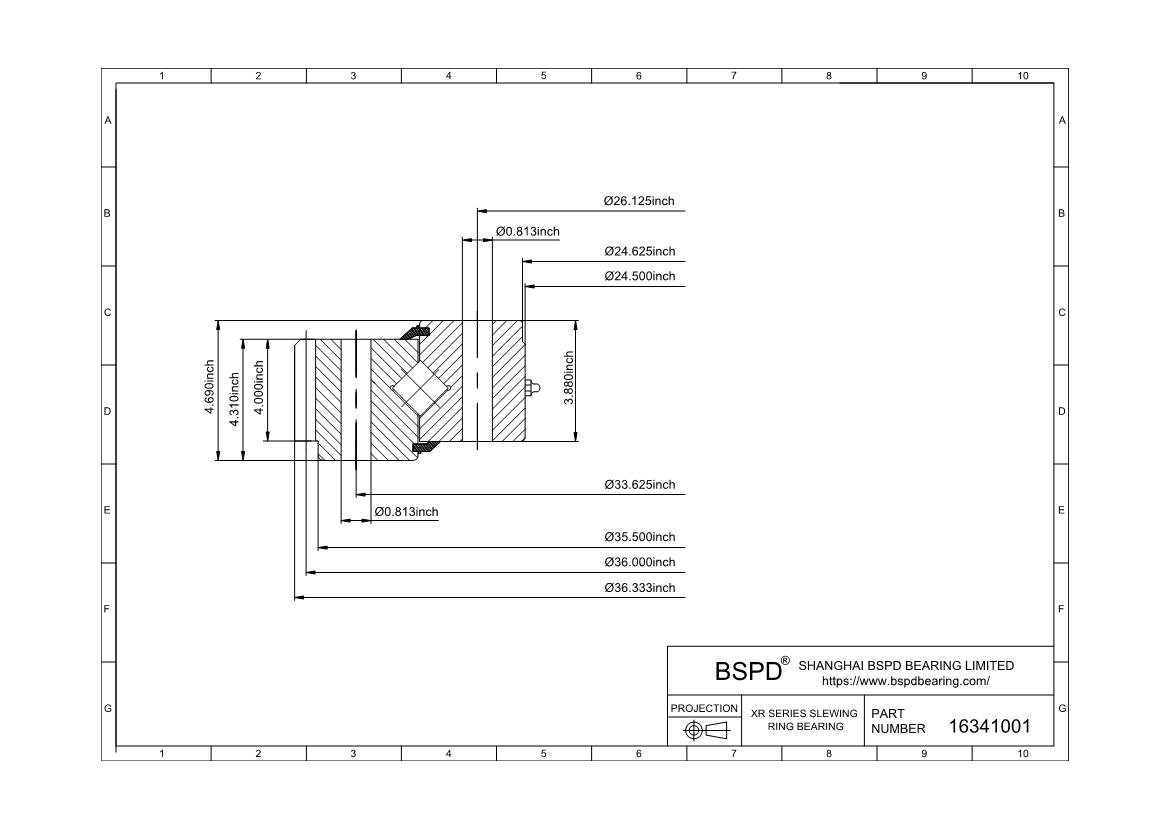

Dimensions: Bore (Inner) Diameter: 24.5"; Outer Diameter: 36.333"; Width (Thickness): 4.69";

16341001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16341001
Moment(ft-lbs) 274290lbs | 1224.509KN
Thrust(lbs) 236880lbs | 1057.5KN
Radial(lbs) 204020lbs | 910.804KN
Maximum Allowable Gear Tooth Load (Fz) 12700lbs | 56.696KN
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 36.333" | 922.86mm
Inside Diameter of Inner Ring (di) 24.5" | 622.3mm
Height of overall bearing assembly(H) 4.69" | 119.13mm
Height of outer ring(Ho) 4.31" | 109.47mm
Height of inner ring(Hi) 3.88" | 98.55mm
External diameter on outer ring(Dr) 35.5" | 901.7mm
Internal diameter on inner ring(dr) 24.625" | 625.48mm
Approximate Weight (lbs) 580lbs | 263.082KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 33.625" | 854.08mm
Number Holes in Outer Ring (no) 24
Size of hole in outer ring(Bo) 0.813
Bolt circle in inner ring(Li) 26.125" | 663.58mm
Number Holes in Inner Ring (ni) 24
Size of hole in inner ring(Bi) 0.831
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 36" | 914.4mm
Diametral Pitch (Pd) 6
Number of Gear Teeth(z2) 216
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 4
gear External
16341001
