16342001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 34.18"； Outer Diameter: 45.05"； Width (Thickness): 3.93";

16342001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16342001
Moment(ft-lbs) 223060lbs | 995.804KN
Thrust(lbs) 145650lbs | 650.223KN
Radial(lbs) 128480lbs | 573.571KN
Maximum Allowable Gear Tooth Load (Fz) 15490lbs | 69.152KN
Bearing Types Slewing Ring Bearing

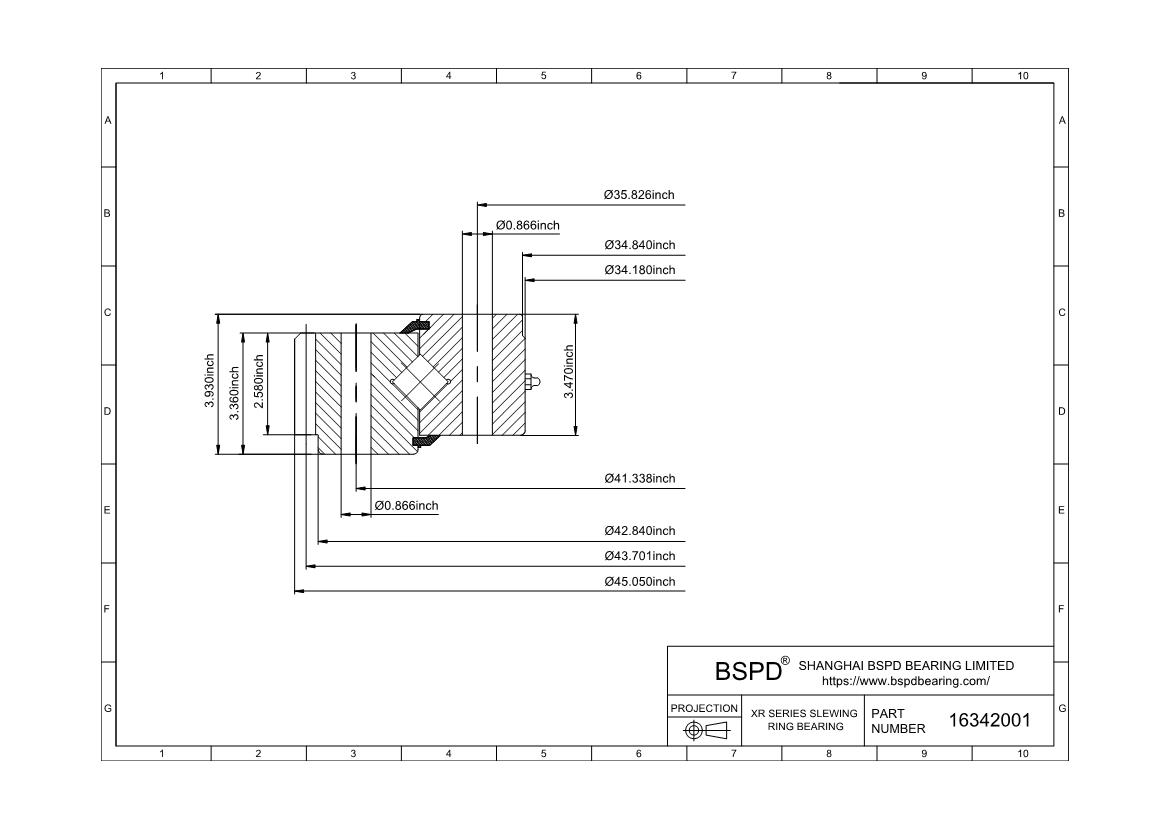

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 45.05" | 1144.27mm
Inside Diameter of Inner Ring (di) 34.18" | 868.17mm
Height of overall bearing assembly(H) 3.93" | 99.82mm
Height of outer ring(Ho) 3.36" | 85.34mm
Height of inner ring(Hi) 3.47" | 88.14mm
External diameter on outer ring(Dr) 42.48" | 1078.99mm
Internal diameter on inner ring(dr) 34.25" | 869.95mm
Approximate Weight (lbs) 470lbs | 213.187KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 41.338" | 1049.99mm
Number Holes in Outer Ring (no) 24
Size of hole in outer ring(Bo) 0.866
Bolt circle in inner ring(Li) 35.826" | 909.98mm
Number Holes in Inner Ring (ni) 24
Size of hole in inner ring(Bi) 0.866
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 43.701" | 1110.01mm
Gear module（M） 10
Number of Gear Teeth(z2) 111
("+" / "-" sign increases tooth thickness at D2(X2) 0.713
Face Width of Gear Teeth(b2) 2.58
gear External
