16344001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 47.48"； Outer Diameter: 63.15"； Width (Thickness): 5.118";

16344001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16344001
Moment(ft-lbs) 861070lbs | 3844.063KN
Thrust(lbs) 399710lbs | 1784.42KN
Radial(lbs) 350400lbs | 1564.286KN
Maximum Allowable Gear Tooth Load (Fz) 20640lbs | 92.143KN
Bearing Types Slewing Ring Bearing

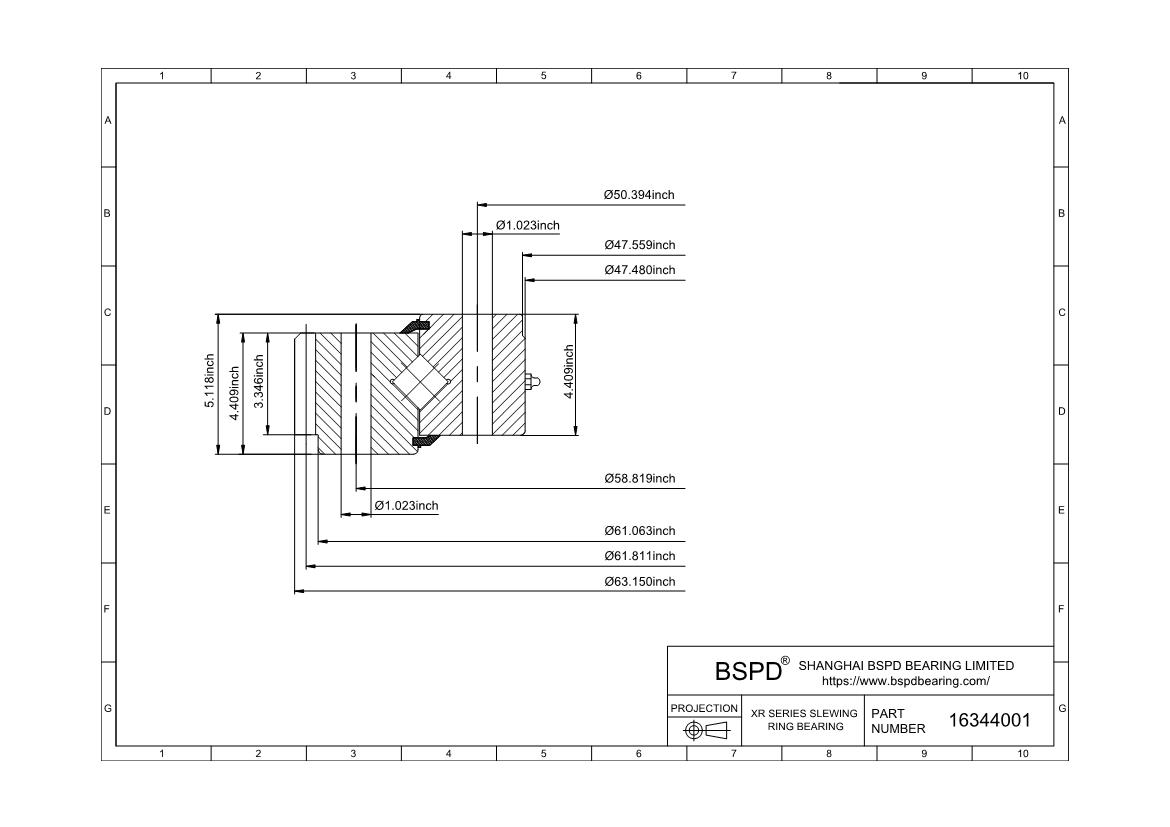

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 63.15" | 1604.01mm
Inside Diameter of Inner Ring (di) 47.48" | 1205.99mm
Height of overall bearing assembly(H) 5.118" | 130mm
Height of outer ring(Ho) 4.409" | 111.99mm
Height of inner ring(Hi) 4.409" | 111.99mm
External diameter on outer ring(Dr) 61.063" | 1551mm
Internal diameter on inner ring(dr) 47.559" | 1208mm
Approximate Weight (lbs) 1420lbs | 644.098KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 58.819" | 1494mm
Number Holes in Outer Ring (no) 36
Size of hole in outer ring(Bo) 1.023
Bolt circle in inner ring(Li) 50.394" | 1280.01mm
Number Holes in Inner Ring (ni) 36
Size of hole in inner ring(Bi) 1.023
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 61.811" | 1570mm
Gear module（M） 10
Number of Gear Teeth(z2) 157
("+" / "-" sign increases tooth thickness at D2(X2) 0.75
Face Width of Gear Teeth(b2) 3.346
gear External
16344001
