16346001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 75.25"; Outer Diameter: 85.866"; Width (Thickness): 3.3";

16346001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16346001
Moment(ft-lbs) 686710lbs | 3065.67KN
Thrust(lbs) 213890lbs | 954.866KN
Radial(lbs) 190740lbs | 851.518KN
Maximum Allowable Gear Tooth Load (Fz) 18280lbs | 81.607KN
Bearing Types Slewing Ring Bearing

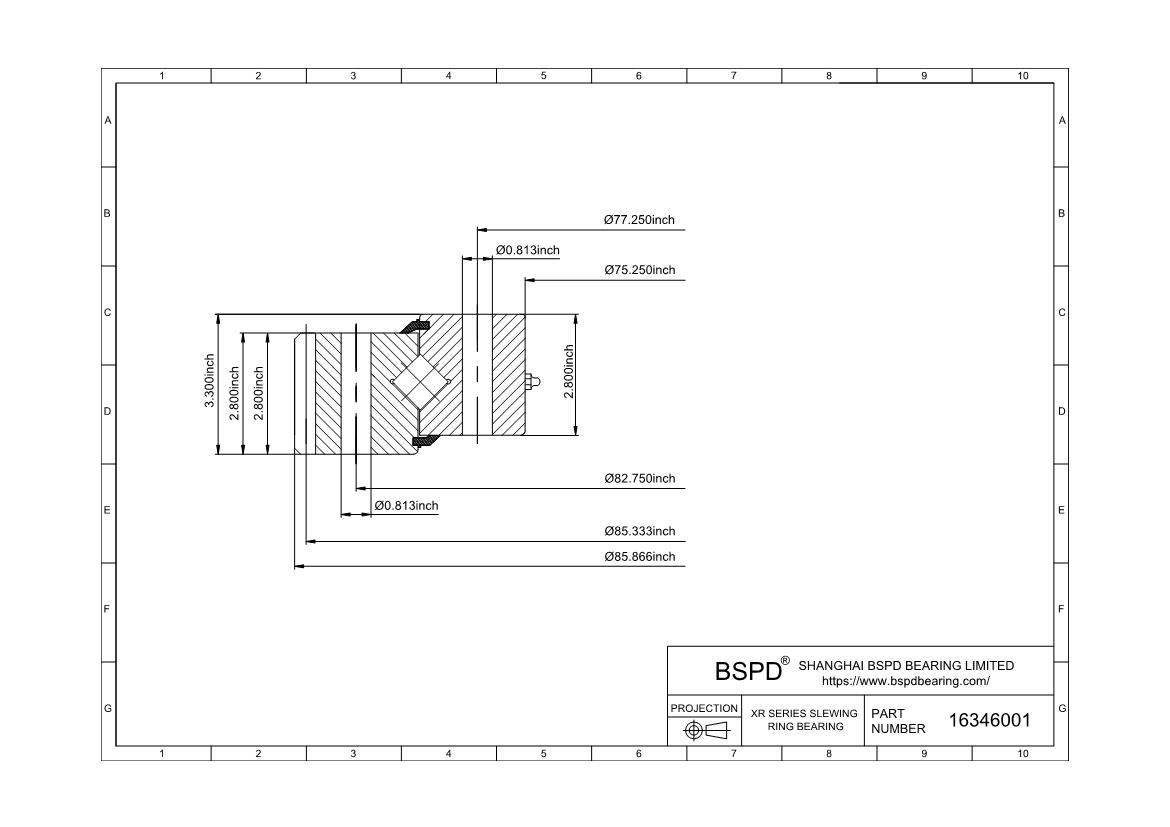

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 85.866" | 2181mm
Inside Diameter of Inner Ring (di) 75.25" | 1911.35mm
Height of overall bearing assembly(H) 3.3" | 83.82mm
Height of outer ring(Ho) 2.8" | 71.12mm
Height of inner ring(Hi) 2.8" | 71.12mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 920lbs | 417.303KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 82.75" | 2101.85mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 0.813
Bolt circle in inner ring(Li) 77.25" | 1962.15mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 0.813
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter of Gear (D2) 85.333" | 2167.46mm
Diametral Pitch (Pd) 3
Number of Gear Teeth(z2) 256
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 2.8
gear External
