16368001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 57.0"； Outer Diameter: 71.338"； Width (Thickness): 5.85";

16368001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16368001
Maximum Allowable Gear Tooth Load (Fz) 27,510lbs | 122.813KN
Moment Load Rating (Crm) 1,329,900ft-lbs | 5937.054KN
Bearing Types Slewing Ring Bearing

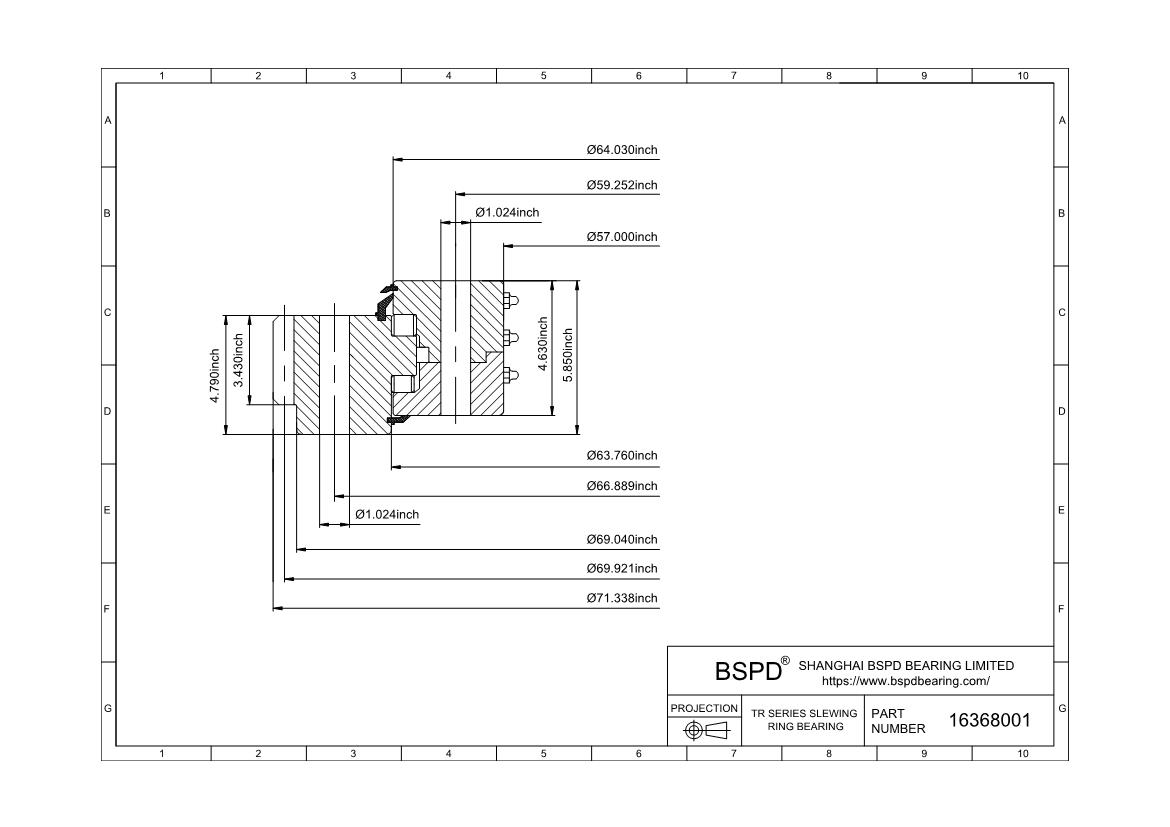

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 71.338 " | 1811.99mm
Inside Diameter of Inner Ring (di) 57.000" | 1447.8mm
Height of overall bearing assembly(H) 5.850" | 148.59mm
Height of outer ring(Ho) 4.790" | 121.67mm
Height of inner ring(Hi) 4.630" | 117.6mm
External diameter on outer ring(Dr) 69.040" | 1753.62mm
Internal diameter on outer ring(Di) 63.760" | 1619.5mm
External diameter on inner ring(do) 64.030" | 1626.36mm
Internal diameter on inner ring(dr) 57.080" | 1449.83mm
Approximate Weight (lbs) 1,600lbs | 725.744KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 66.889 " | 1698.98mm
Number Holes in Outer Ring (no) 60
Size of hole in outer ring(Bo) 1.024
Bolt circle in inner ring(Li) 59.252" | 1505mm
Number Holes in Inner Ring (ni) 60
Size of hole in inner ring(Bi) 1.024
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 69.921" | 1775.99mm
Gear module（M） 12
Number of Gear Teeth(z2) 148
("+" / "-" sign increases tooth thickness at D2(X2) +.50
Face Width of Gear Teeth(b2) 3.430
gear External gear
16368001
