16372001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 144.882"; Outer Diameter: 170.079"; Width (Thickness): 9.941";

16372001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16372001
Maximum Allowable Gear Tooth Load (Fz) 111,600lbs | 498.214KN
Moment Load Rating (Crm) 24,086,000ft-lbs | 107526.786KN
Bearing Types Slewing Ring Bearing

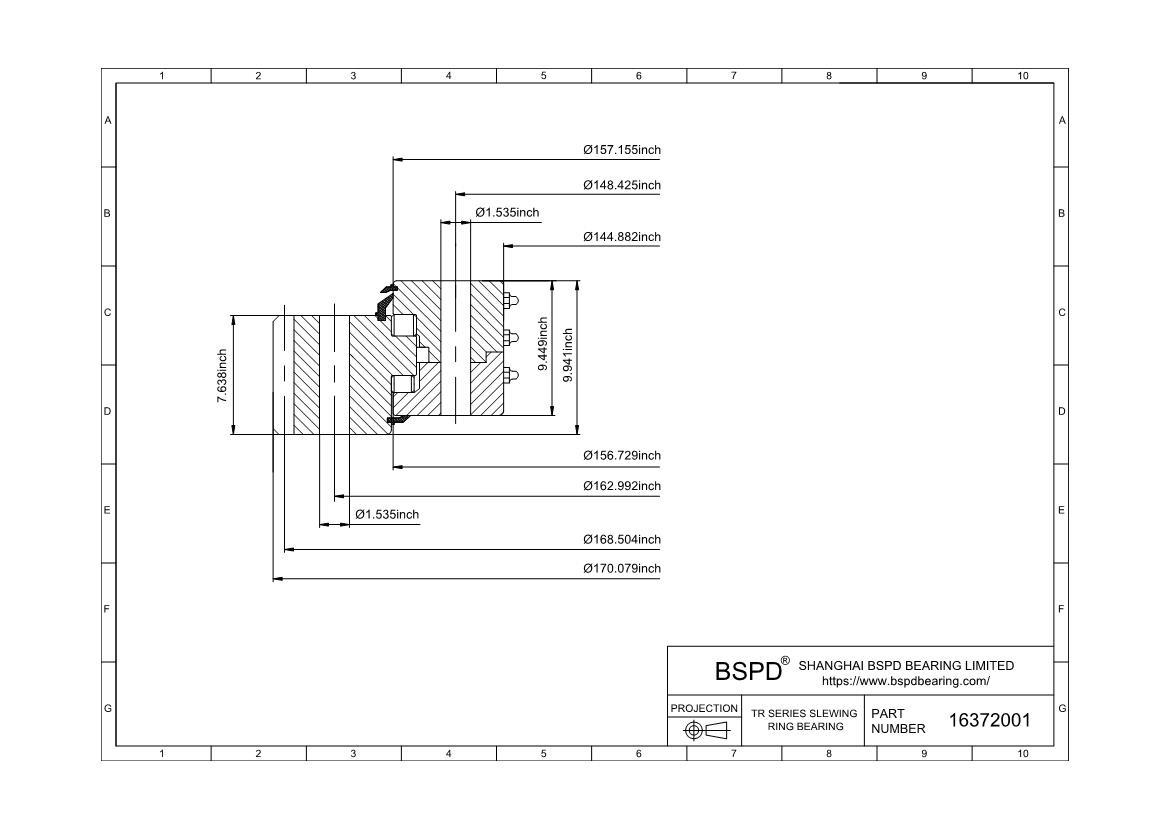

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 170.079" | 4320.01mm
Inside Diameter of Inner Ring (di) 144.882" | 3680mm
Height of overall bearing assembly(H) 9.941" | 252.5mm
Height of outer ring(Ho) 7.638" | 194.01mm
Height of inner ring(Hi) 9.449" | 240mm
External diameter on outer ring(Dr) -
Internal diameter on outer ring(Di) 156.729" | 3980.92mm
External diameter on inner ring(do) 157.155" | 3991.74mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 13,830lbs | 6273.15KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 162.992" | 4140mm
Number Holes in Outer Ring (no) 120
Size of hole in outer ring(Bo) 1.535
Bolt circle in inner ring(Li) 148.425" | 3770mm
Number Holes in Inner Ring (ni) 120
Size of hole in inner ring(Bi) 1.535
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 168.504" | 4280mm
Gear module(M) 20
Number of Gear Teeth(z2) 214
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 7.638
gear External gear
16372001
