16374001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 36.4"； Outer Diameter: 48.25"； Width (Thickness): 4";

16374001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16374001
Maximum Allowable Gear Tooth Load (Fz) 21,290
Moment Load Rating (Crm) 720,000ft-lbs | 3214.286KN
Bearing Types Slewing Ring Bearing

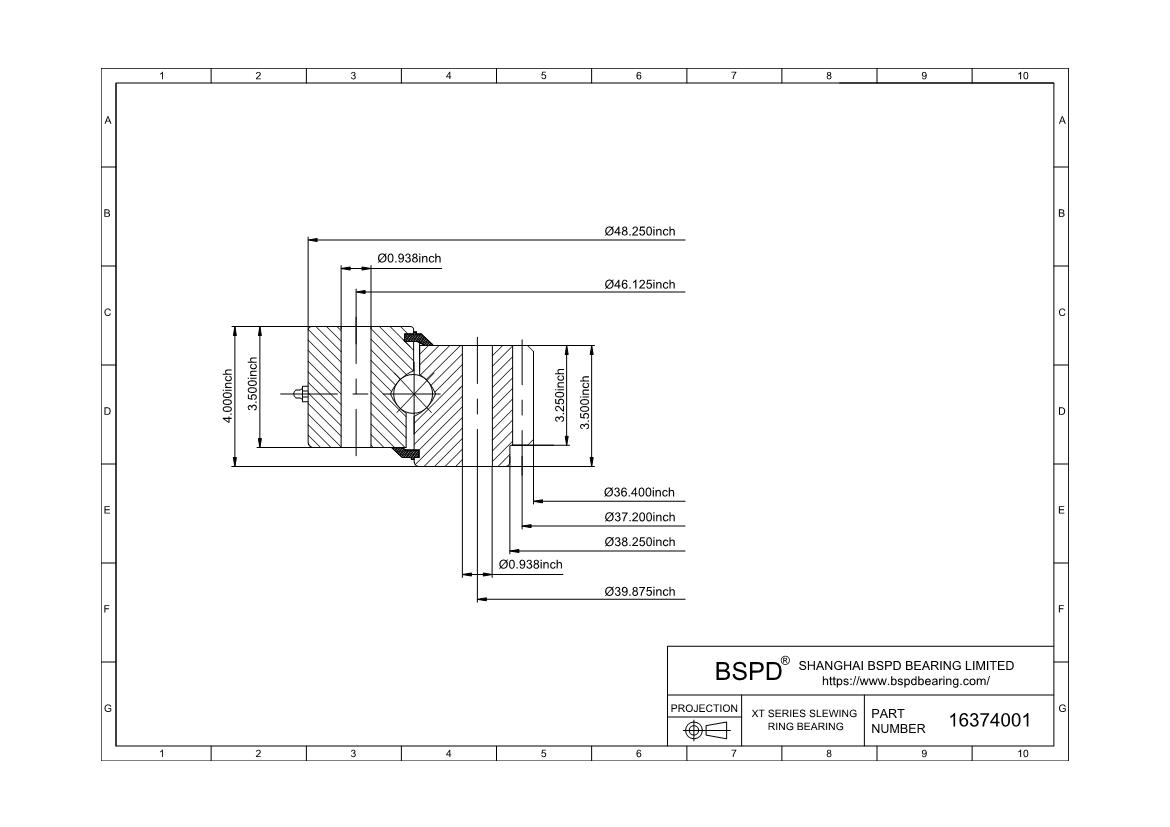

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 48.250" | 1225.55mm
Inside Diameter of Inner Ring (di) 36.400" | 924.56mm
Height of overall bearing assembly(H) 4.000" | 101.6mm
Height of outer ring(Ho) 3.500" | 88.9mm
Height of inner ring(Hi) 3.500" | 88.9mm
External diameter on outer ring(Dr) -
Internal diameter on inner ring(dr) 38.250" | 971.55mm
Approximate Weight (lbs) 660lbs | 299.369KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 46.125" | 1171.58mm
Number Holes in Outer Ring (no) 30
Size of hole in outer ring(Bo) 0.938
Bolt circle in inner ring(Li) 39.875" | 1012.83mm
Number Holes in Inner Ring (ni) 36
Size of hole in inner ring(Bi) 0.938
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter (D2) 37.200" | 944.88mm
Pd or (m) 2.5
Number of Teeth (z2) 93
Addendum modification coefficient of gear teeth(x2) 0
Face width of gear teeth(b2) 3.250
gear Internal gear
16374001
