16378001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 50.2"; Outer Diameter: 70.5"; Width (Thickness): 8.62";

16378001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16378001
Maximum Allowable Gear Tooth Load (Fz) 56,440lbs | 251.964KN
Moment Load Rating (Crm) 3,514,400ft-lbs | 15689.286KN
Bearing Types Slewing Ring Bearing

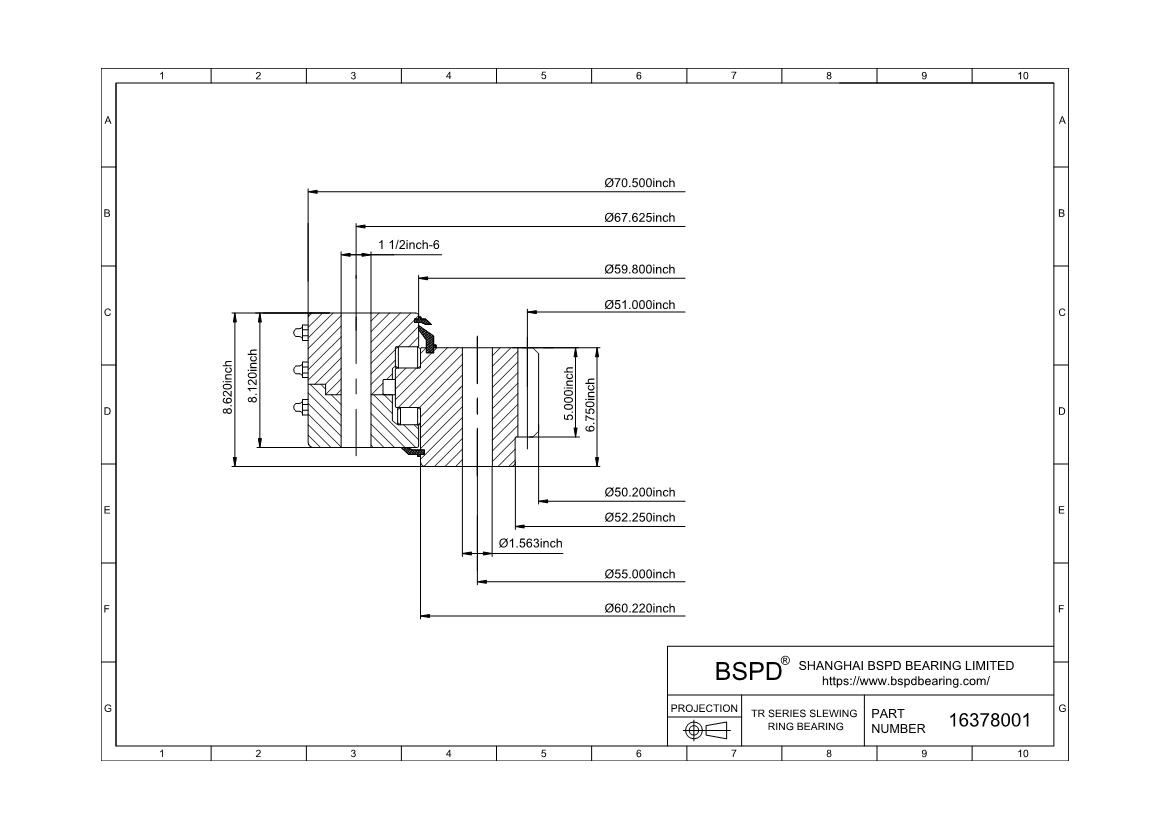

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 70.500" | 1790.7mm
Inside Diameter of Inner Ring (di) 50.200" | 1275.08mm
Height of overall bearing assembly(H) 8.620" | 218.95mm
Height of outer ring(Ho) 8.120" | 206.25mm
Height of inner ring(Hi) 6.750" | 171.45mm
External diameter on outer ring(Dr) -
Internal diameter on outer ring(Di) 59.800" | 1518.92mm
External diameter on inner ring(do) 60.220" | 1529.59mm
Internal diameter on inner ring(dr) 52.250" | 1327.15mm
Approximate Weight (lbs) 3,550lbs | 1610.245KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 67.625" | 1717.68mm
Number Holes in Outer Ring (no) 48
Size of hole in outer ring(Bo) 11/2-6
Bolt circle in inner ring(Li) 55.000" | 1397mm
Number Holes in Inner Ring (ni) 48
Size of hole in inner ring(Bi) 1.563
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form SD
Pitch Diameter of Gear (D2) 51.000" | 1295.4mm
Diametral Pitch (Pd) 2
Number of Gear Teeth(z2) 102
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 5.000
gear Internal gear
16378001
