16380001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 85.433"； Outer Diameter: 108.189"； Width (Thickness): 8.504";

16380001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16380001
Maximum Allowable Gear Tooth Load (Fz) 57,210lbs | 255.402KN
Moment Load Rating (Crm) 9,038,400ft-lbs | 40350KN
Bearing Types Slewing Ring Bearing

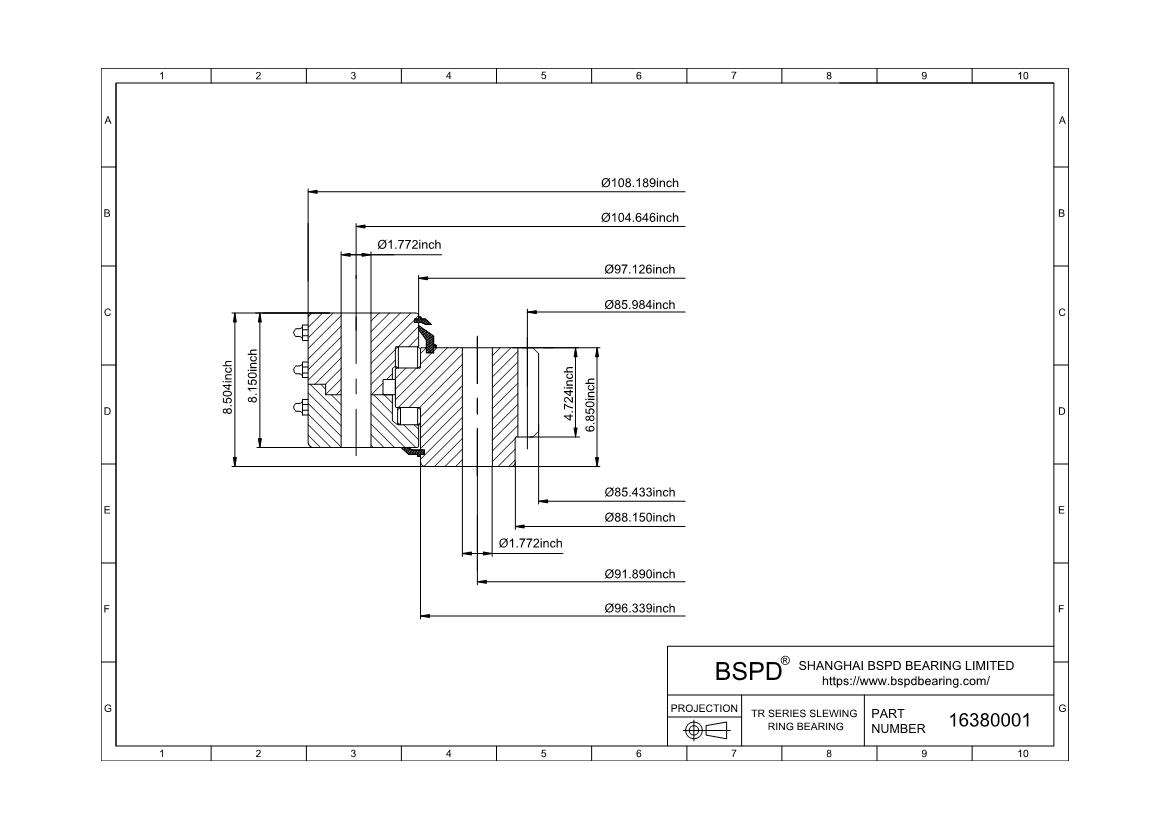

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 108.189" | 2748mm
Inside Diameter of Inner Ring (di) 85.433" | 2170mm
Height of overall bearing assembly(H) 8.504" | 216mm
Height of outer ring(Ho) 8.150" | 207.01mm
Height of inner ring(Hi) 6.850" | 173.99mm
External diameter on outer ring(Dr) -
Internal diameter on outer ring(Di) 97.126" | 2467mm
External diameter on inner ring(do) 96.339" | 2447.01mm
Internal diameter on inner ring(dr) 88.150" | 2239.01mm
Approximate Weight (lbs) 6,000lbs | 2721.54KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 104.646" | 2658.01mm
Number Holes in Outer Ring (no) 80
Size of hole in outer ring(Bo) 1.772
Bolt circle in inner ring(Li) 91.890" | 2334.01mm
Number Holes in Inner Ring (ni) 80
Size of hole in inner ring(Bi) 1.772
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 85.984" | 2183.99mm
Gear module(M) 14
Number of Gear Teeth(z2) 156
("+" / "-" sign increases tooth thickness at D2(X2) -0.5
Face Width of Gear Teeth(b2) 4.724
gear Internal gear
