16381001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 97.008"； Outer Diameter: 120.866"； Width (Thickness): 13.701";

16381001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16381001
Maximum Allowable Gear Tooth Load (Fz) 143,850lbs | 642.188KN
Moment Load Rating (Crm) 10,642,000ft-lbs | 47508.929KN
Bearing Types Slewing Ring Bearing

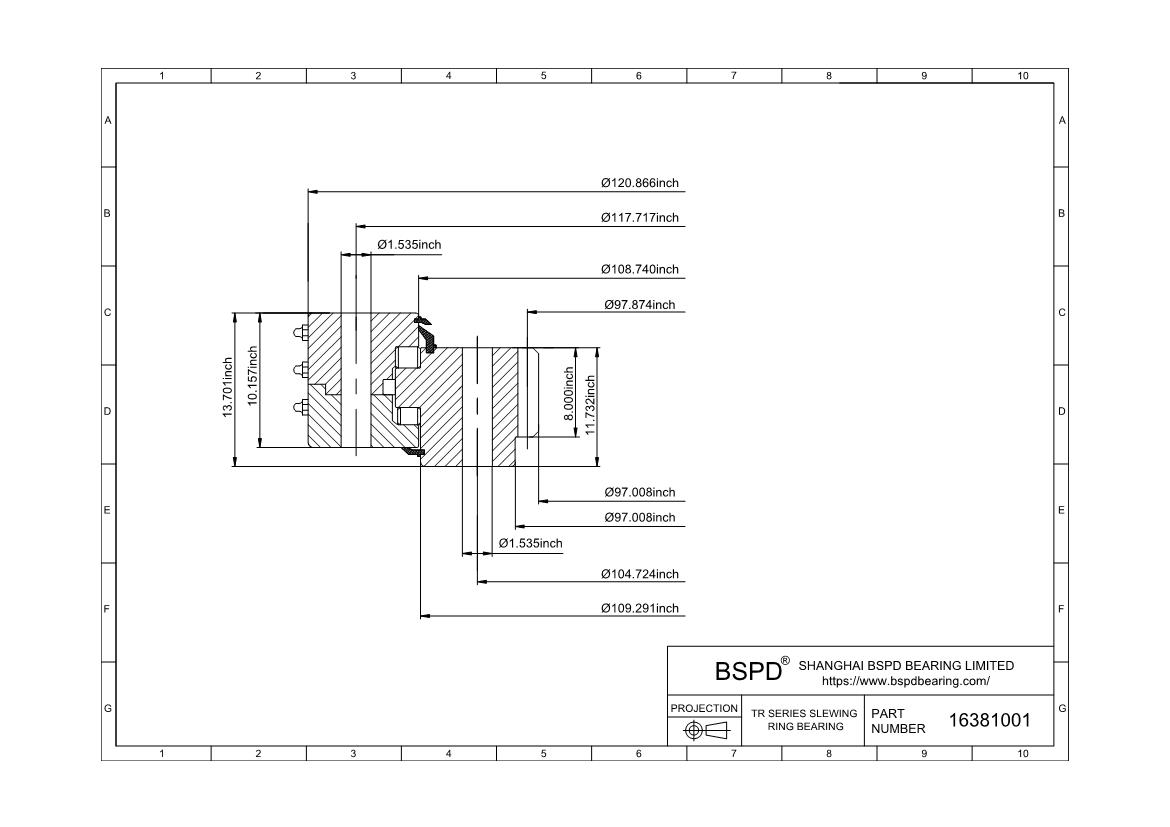

Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 120.866" | 3070mm
Inside Diameter of Inner Ring (di) 97.008" | 2464mm
Height of overall bearing assembly(H) 13.701" | 348.01mm
Height of outer ring(Ho) 10.157" | 257.99mm
Height of inner ring(Hi) 11.732" | 297.99mm
External diameter on outer ring(Dr) -
Internal diameter on outer ring(Di) 108.740" | 2762mm
External diameter on inner ring(do) 109.291" | 2775.99mm
Internal diameter on inner ring(dr) 97.008" | 2464mm
Approximate Weight (lbs) 10,820lbs | 4907.844KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 117.717" | 2990.01mm
Number Holes in Outer Ring (no) 72
Size of hole in outer ring(Bo) 1.535
Bolt circle in inner ring(Li) 104.724" | 2659.99mm
Number Holes in Inner Ring (ni) 72
Size of hole in inner ring(Bi) 1.535
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 97.874" | 2486mm
Gear module（M） 22
Number of Gear Teeth(z2) 113
("+" / "-" sign increases tooth thickness at D2(X2) -0.5
Face Width of Gear Teeth(b2) 8.000
gear Internal gear
16381001
