16383001 Kaydon Slewing Bearings

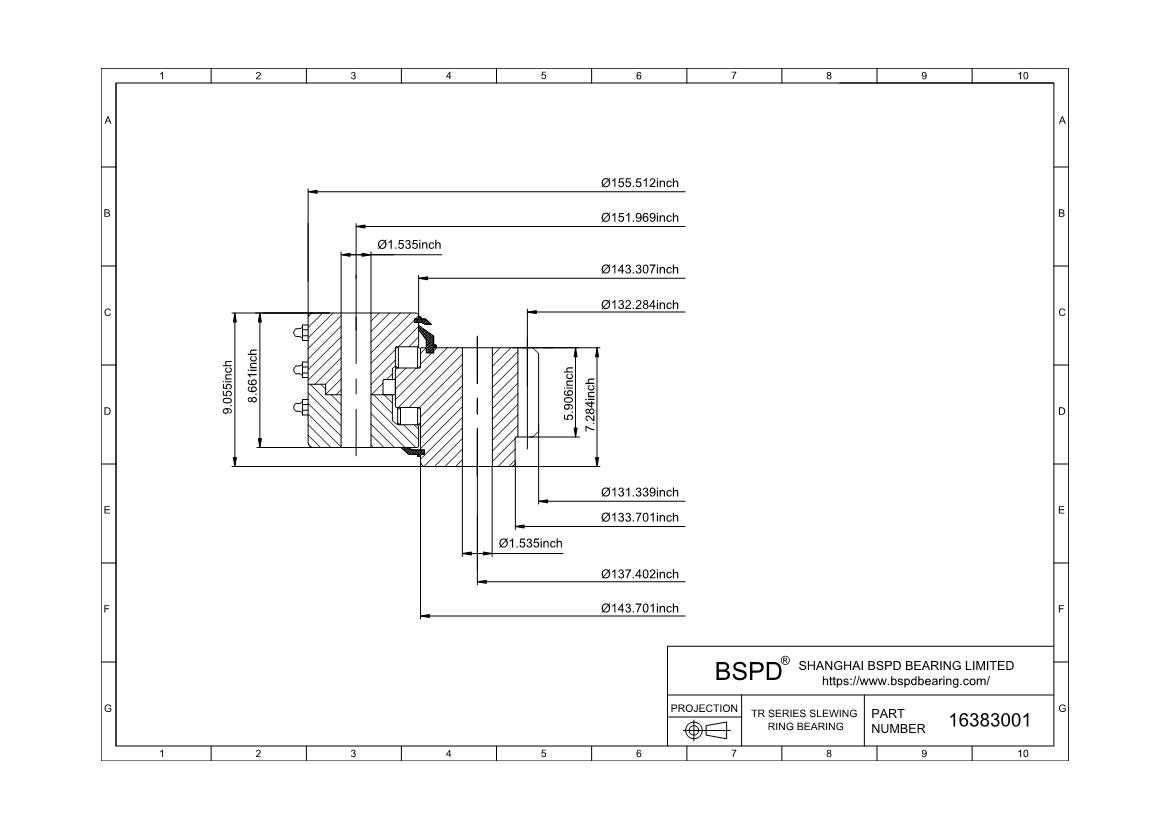

Dimensions: Bore (Inner) Diameter: 131.339"； Outer Diameter: 155.512"； Width (Thickness): 9.055";

16383001
Slewing Bearings of similar size
same inner diameter
same outer diameter
Product Attributes
Specifications
Part Number 16383001
Maximum Allowable Gear Tooth Load (Fz) 59,840lbs | 267.143KN
Moment Load Rating (Crm) 18,616,000ft-lbs | 83107.143KN
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 155.512" | 3950mm
Inside Diameter of Inner Ring (di) 131.339" | 3336.01mm
Height of overall bearing assembly(H) 9.055" | 230mm
Height of outer ring(Ho) 8.661" | 219.99mm
Height of inner ring(Hi) 7.284" | 185.01mm
External diameter on outer ring(Dr) -
Internal diameter on outer ring(Di) 143.307" | 3640mm
External diameter on inner ring(do) 143.701" | 3650.01mm
Internal diameter on inner ring(dr) 133.701" | 3396.01mm
Approximate Weight (lbs) 10,550lbs | 4785.375KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 151.969" | 3860.01mm
Number Holes in Outer Ring (no) 96
Size of hole in outer ring(Bo) 1.535
Bolt circle in inner ring(Li) 137.402" | 3490.01mm
Number Holes in Inner Ring (ni) 96
Size of hole in inner ring(Bi) 1.535
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 132.284" | 3360.01mm
Gear module（M） 12
Number of Gear Teeth(z2) 280
("+" / "-" sign increases tooth thickness at D2(X2) 0
Face Width of Gear Teeth(b2) 5.906
gear Internal gear
