16388001 Kaydon Slewing Bearings
Dimensions: Bore (Inner) Diameter: 203.0"; Outer Diameter: 233.0"; Width (Thickness): 11.75";

16388001
Slewing Bearings of similar size
same inner diameter
same outer diameter

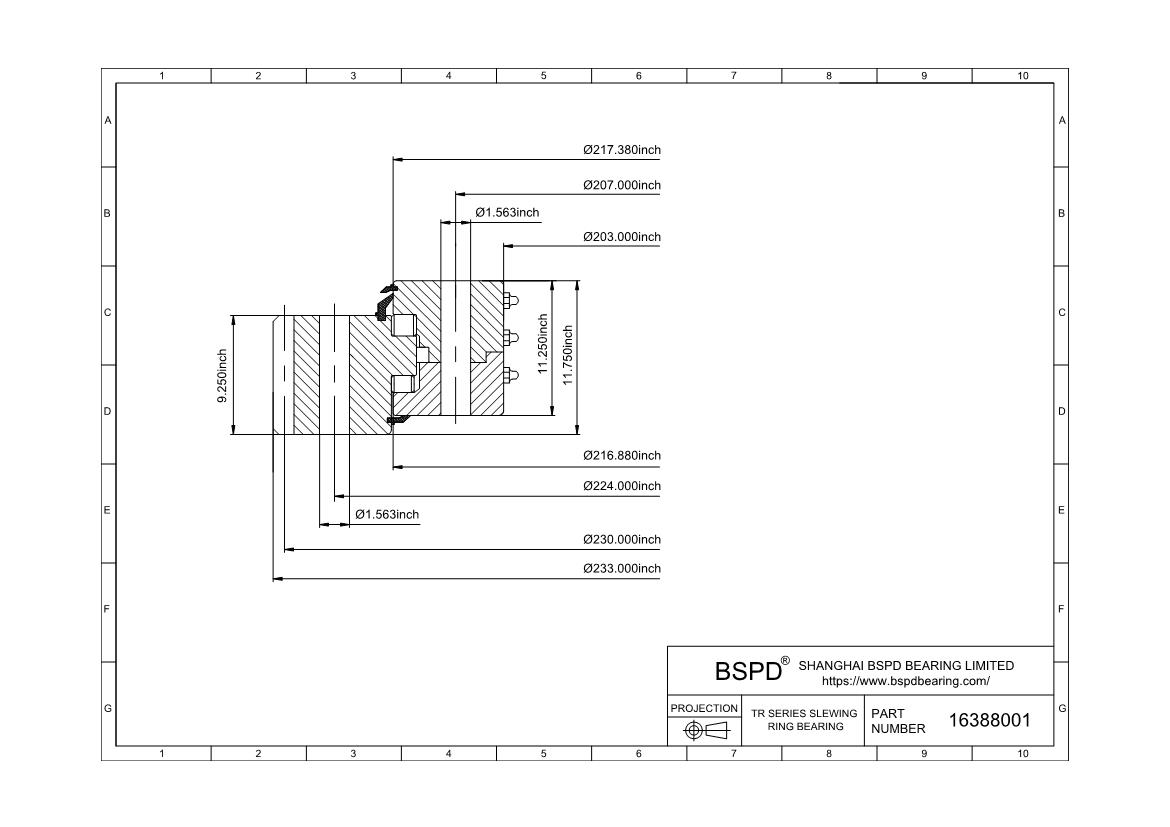

Product Attributes
Specifications
Part Number 16388001
Maximum Allowable Gear Tooth Load (Fz) 130,300lbs | 581.696KN
Moment Load Rating (Crm) 43,823,000ft-lbs | 195638.393KN
Bearing Types Slewing Ring Bearing
Outline Dimensions and Weight
Outside Diameter of Outer Ring (Do) 233.000" | 5918.2mm
Inside Diameter of Inner Ring (di) 203.000" | 5156.2mm
Height of overall bearing assembly(H) 11.750" | 298.45mm
Height of outer ring(Ho) 9.250" | 234.95mm
Height of inner ring(Hi) 11.250" | 285.75mm
External diameter on outer ring(Dr) 228.000" | 5791.2mm
Internal diameter on outer ring(Di) 216.880" | 5508.75mm
External diameter on inner ring(do) 217.380" | 5521.45mm
Internal diameter on inner ring(dr) -
Approximate Weight (lbs) 25,500lbs | 11566.545KG
Mounting Holes
Bolt Circle in Outer Ring (Lo) 224.000" | 5689.6mm
Number Holes in Outer Ring (no) 150
Size of hole in outer ring(Bo) 1.563
Bolt circle in inner ring(Li) 207.000" | 5257.8mm
Number Holes in Inner Ring (ni) 150
Size of hole in inner ring(Bi) 1.563
Gear Data
Pressure Angle of Gear Teeth (α) 20 º
Tooth form FD
Pitch Diameter of Gear (D2) 230.000" | 5842mm
Diametral Pitch (Pd) 1
Number of Gear Teeth(z2) 230
("+" / "-" sign increases tooth thickness at D2(X2) +.50
Face Width of Gear Teeth(b2) 7.000
gear External gear
